DEM128064AFGH-PW - LCD 128x64 fekete pont LED-hv. -20..+70°C hv.:fehér - DISPLAY

27.8469 €+ VAT
35.3655 € incl. VAT

DEM128064AFGH-PW - LCD 128x64 fekete pont LED-hv. -20..+70°C hv.:fehér - DISPLAY

Name: DEM128064AFGH-PW - LCD 128x64 fekete pont LED-hv. -20..+70°C hv.:fehér - DISPLAY
Brand: DISPLAY
SKU: 47-03-96
Price: 35.3655 EUR
Availability: InStock

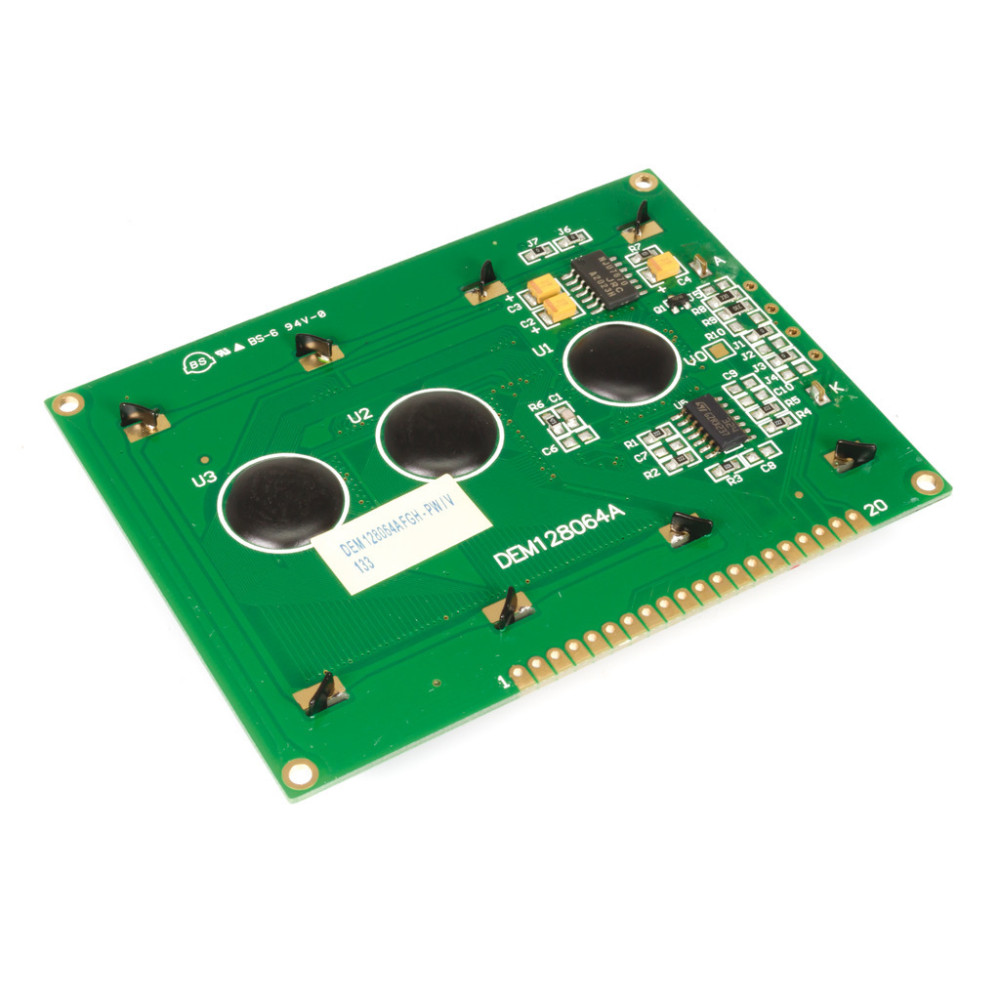

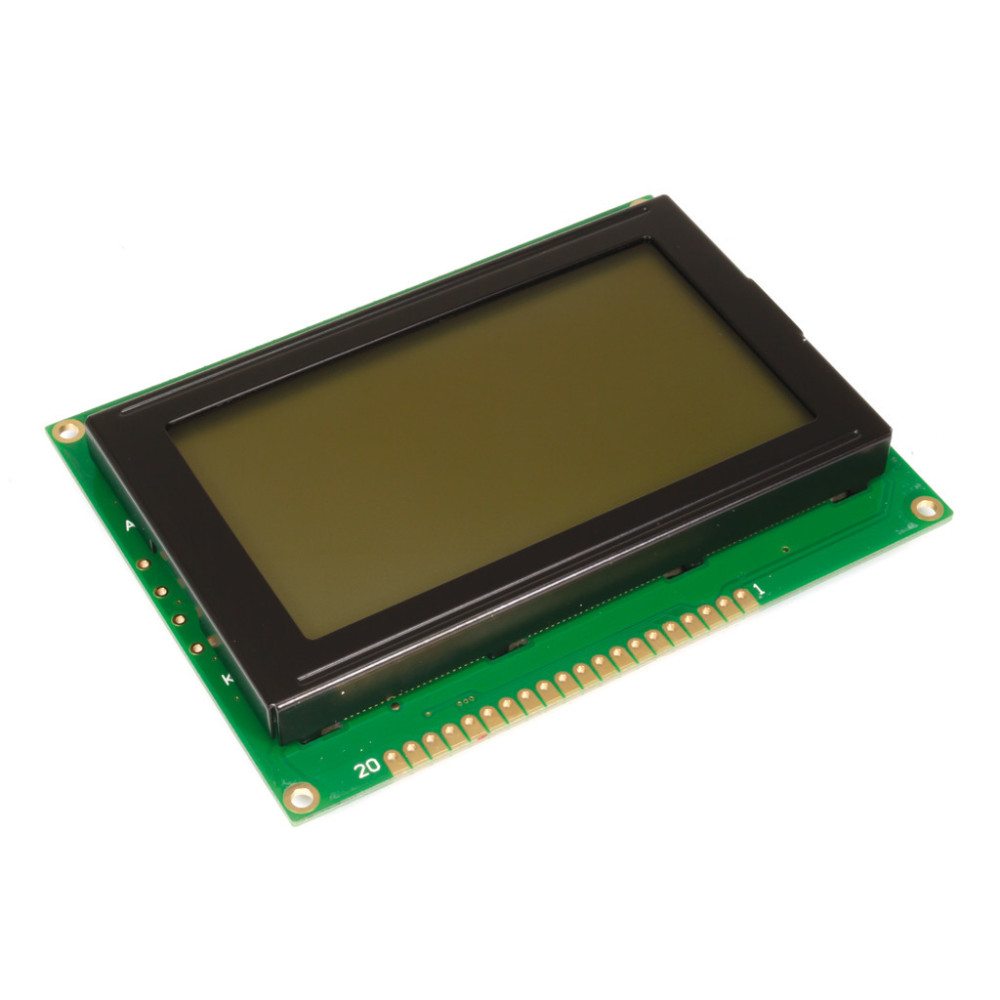

The picture is for illustration purposes only. Please read the product description!

In stock 2 pcs

27.8469 €+ VAT
35.3655 € incl. VAT

Graphic LCD-display, LCD 128x64, Black pixel -20..+70°C Backlight colour:White

Manufacturer code:

DEM128064AFGH-PW

Manufacturer:

DISPLAY

Datasheet:

DEM128064A_FGH-PW.pdf

Group:

Dot Matrix Display Modules

Component Family:

Dot Matrix Display Modules

Case Style:

mountable

Case:

Module

Termination Type:

mountable

Number of Pins:

External Length [mm]:

93 mm

External Thickness [mm]:

12.8 mm

External Width [mm]:

70 mm

Supply Voltage Min. [V]:

+4.5 V

Supply Voltage Max. [V]:

+5.5 V

Supply Current [mA], Nom.:

2.6 mA

Supply Current/backlight [mA], Nom.:

90 mA

Backlighting Colour:

White

Backlighting Type:

LED

Interface Type:

8-bit, 4-bit

Viewing Area:

71.7x39 mm

LCD Display Type:

Transflective

Display Mode:

STN, positive

Pixel Size:

0.48x0.48 mm

Number Of Pixels:

128 x 64 pixel

Operating Temperature Min. [°C]:

-20 °C

Operating Temperature Max. [°C]:

+70 °C

ROHS:

Yes

pcs

Our Warehouse

2 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Weight:

77.5 g/pcs
