1751248 - 2-pólusú NYÁK-os sorkapocs RM=3.5mm zöld - PHOENIX CONTACT
The picture is for illustration purposes only. Please read the product description!
Out of stock

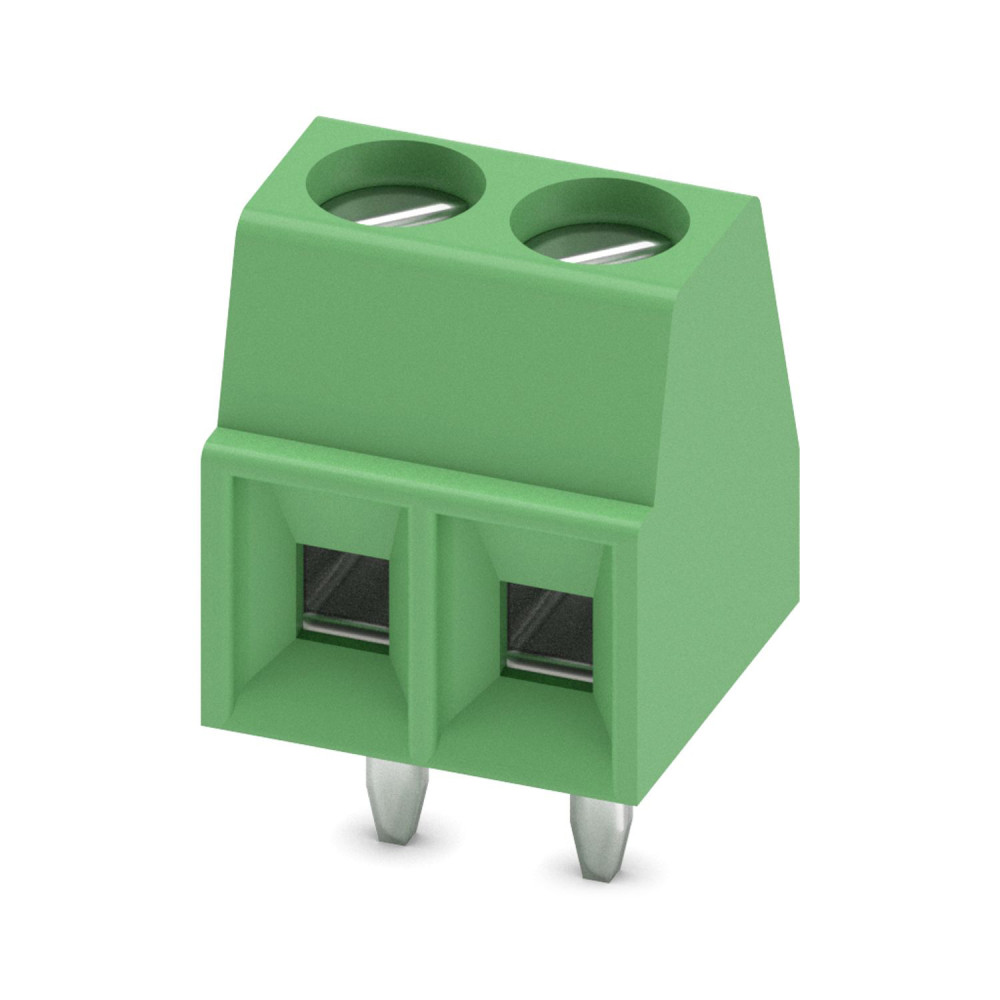

Terminal Block, 2-pole for PCB RM=3.5mm Green
Manufacturer code:
1751248
Manufacturer:
Datasheet:
Group:
Terminal Blocks - PCB Mount
Component Family:
Product Range:
Case:
Termination Type:
Through-hole technology
Number of Pins:
2
Insulation Voltage [V], Max.:
2.5 kV
Raster measure:
3.5 mm
Standard:
VDE, CSA
Continual Current [A], Max.:
13.5 A
Connector Configuration:
1-row, radial, side wire
Connector Type:
Solderable, terminal block
Voltage [V], Max.:
160 V
Cable Diameter [mm], Max:
1.5 mm²
Cable Diameter [mm], Min.:
0.14 mm²
Contact Material:
Réz ötvözet
Contact Plating:
Tinned
Insulator Material:
PA
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+125 °C
ROHS:
Yes
Our Warehouse
0 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Data
Weight:
0.958 g/pcs
