AK3000/1-5,0-PEBBLEGREY - NYÁK-os sorkapocs 45° 1-pólusú RM=5.0mm szürke SAW-nélkül - PTR MESSTECHNIK

0.1295 €+ VAT
0.1645 € incl. VAT

AK3000/1-5,0-PEBBLEGREY - NYÁK-os sorkapocs 45° 1-pólusú RM=5.0mm szürke SAW-nélkül - PTR MESSTECHNIK

Name: AK3000/1-5,0-PEBBLEGREY - NYÁK-os sorkapocs 45° 1-pólusú RM=5.0mm szürke SAW-nélkül - PTR MESSTECHNIK
Brand: PTR MESSTECHNIK
SKU: 53-06-31
Price: 0.1645 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 13 pcs

End of Life

0.1295 €+ VAT
0.1645 € incl. VAT

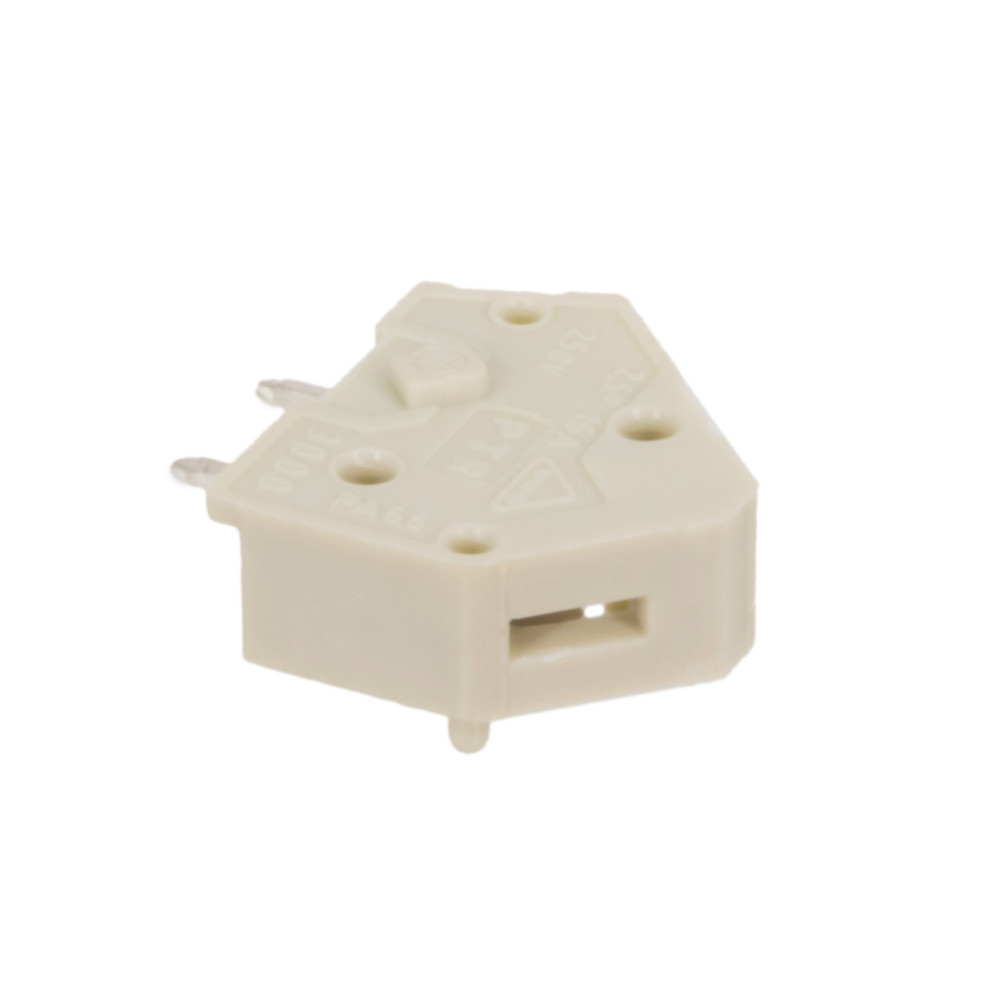

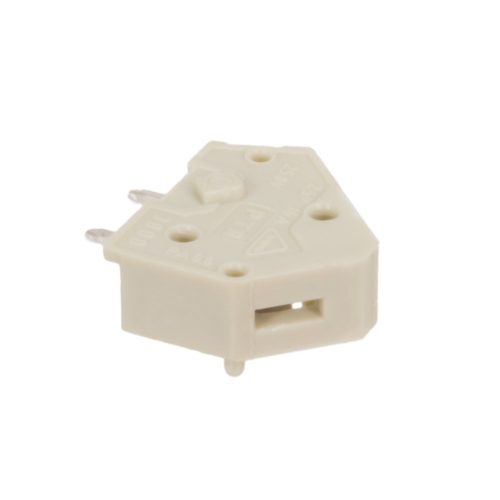

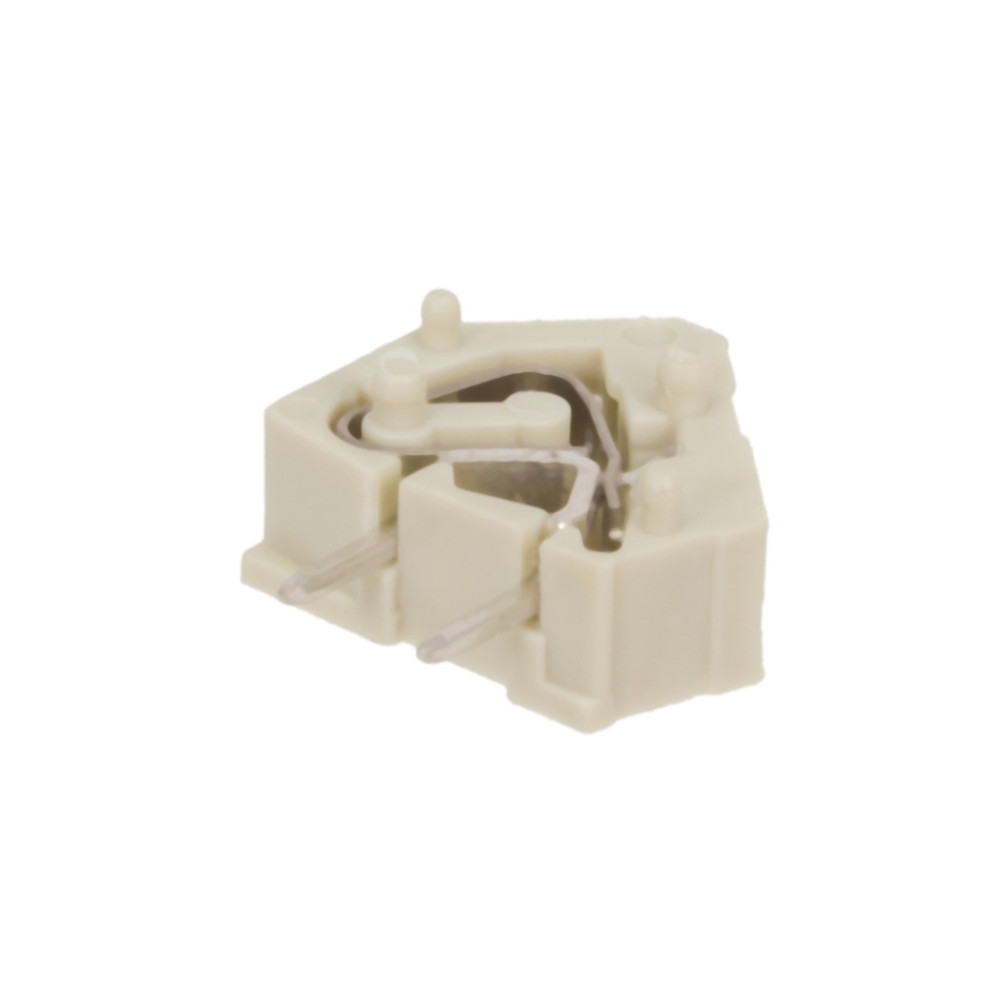

Terminal Block, for PCB 45° 1-pole RM=5.0mm Grey without SAW

Manufacturer code:

AK3000/1-5,0-PEBBLEGREY

Manufacturer:

PTR MESSTECHNIK

Datasheet:

PTR_AK3000_..-5.0-GREY.pdf

Group:

Terminal Blocks - PCB Mount

Component Family:

Terminal block, RM=5.0mm

Product Range:

AK3000

Case:

PCB-mountable

Termination Type:

Through-hole technology

Insulation Voltage [V], Max.:

2 kV

Raster measure:

5 mm

Standard:

VDE, UL

Continual Current [A], Max.:

24 A

Connector Configuration:

1-row, radial, side wire 45°

Connector Type:

Solderable, terminal block

Voltage [V], Max.:

250 V

Cable Diameter [mm], Max:

2.5 mm²

Cable Diameter [mm], Min.:

0.14 mm²

Contact Material:

Steel plate

Insulator Material:

PA 66

Operating Temperature Min. [°C]:

-30 °C

Operating Temperature Max. [°C]:

+105 °C

ROHS:

Yes

Number of Pins:

pcs

Our Warehouse

13 pcs

Available for immediate delivery

Info

Additional Datasheet:

ROHS_PTR2.pdf
