330-031-11-00 - 3-pólusú NYÁK-os 45° sorkapocs RM=5mm szürke, 12.5mm magas - KARSON
The picture is for illustration purposes only. Please read the product description!
Out of stock

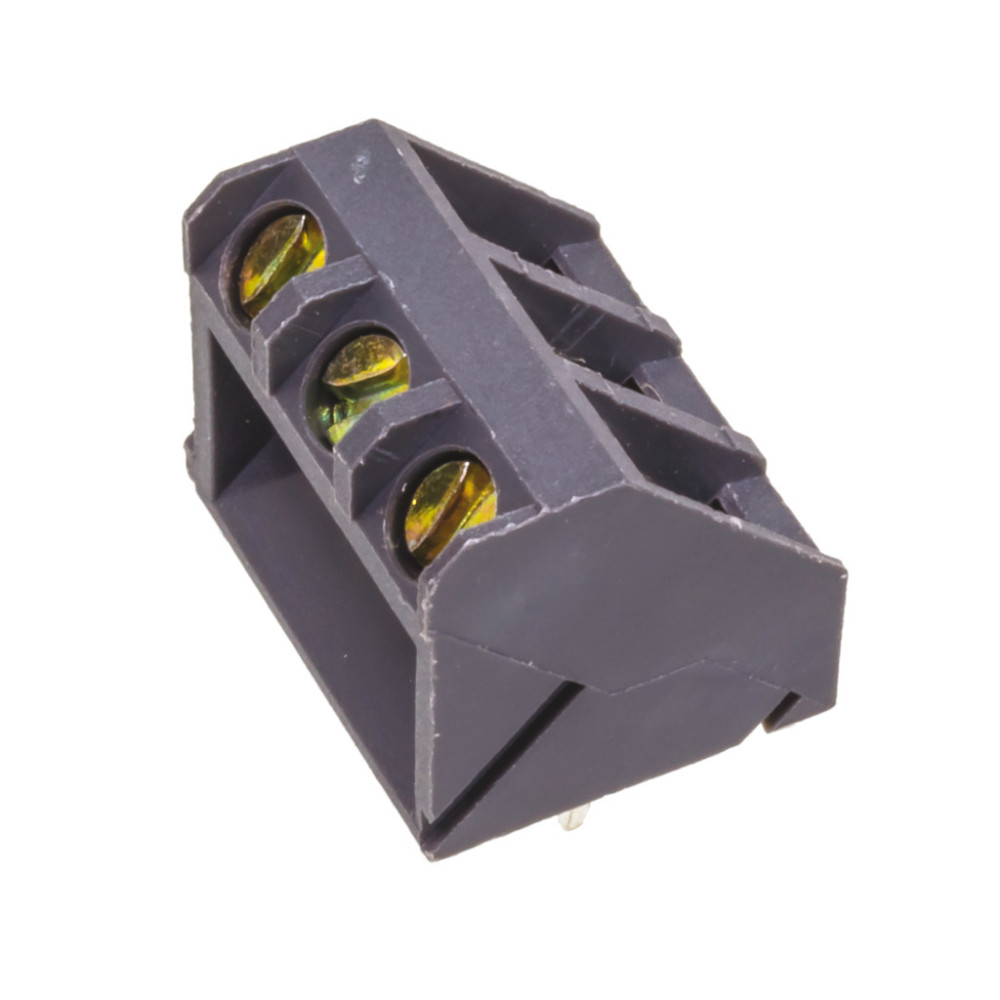

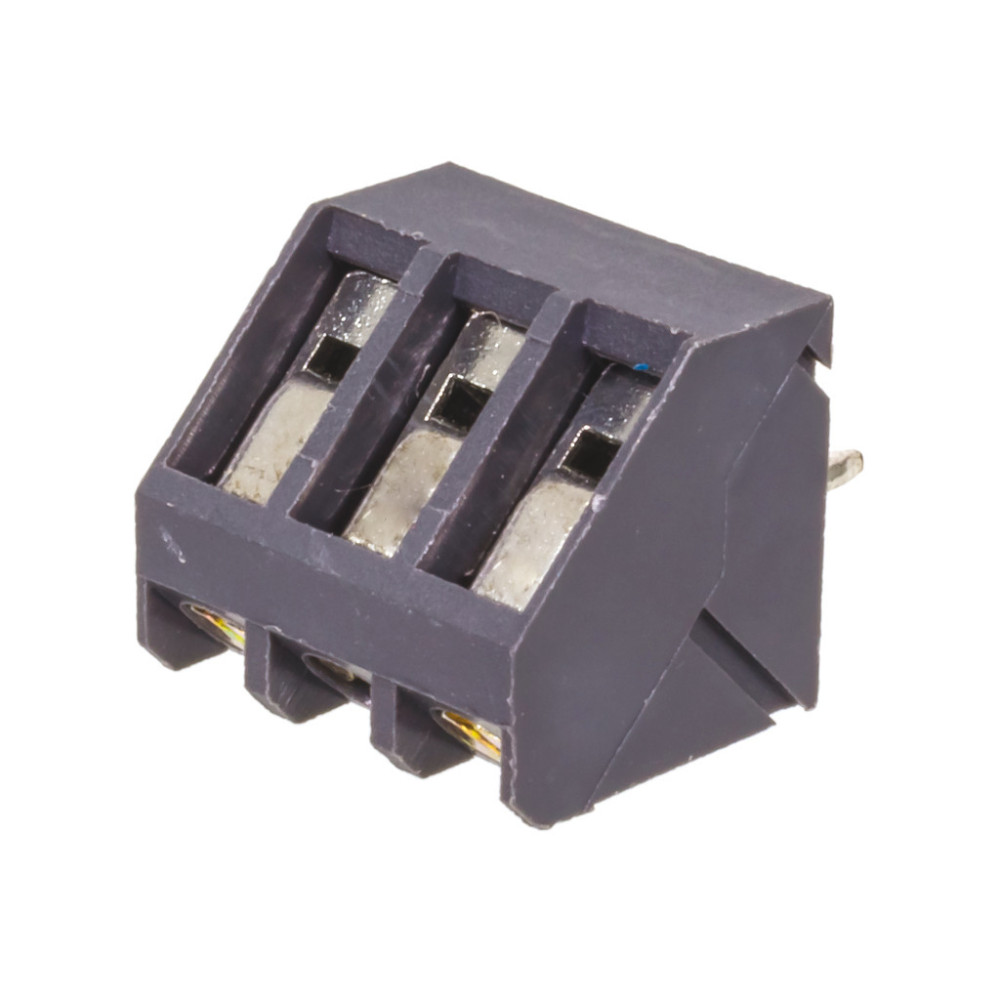

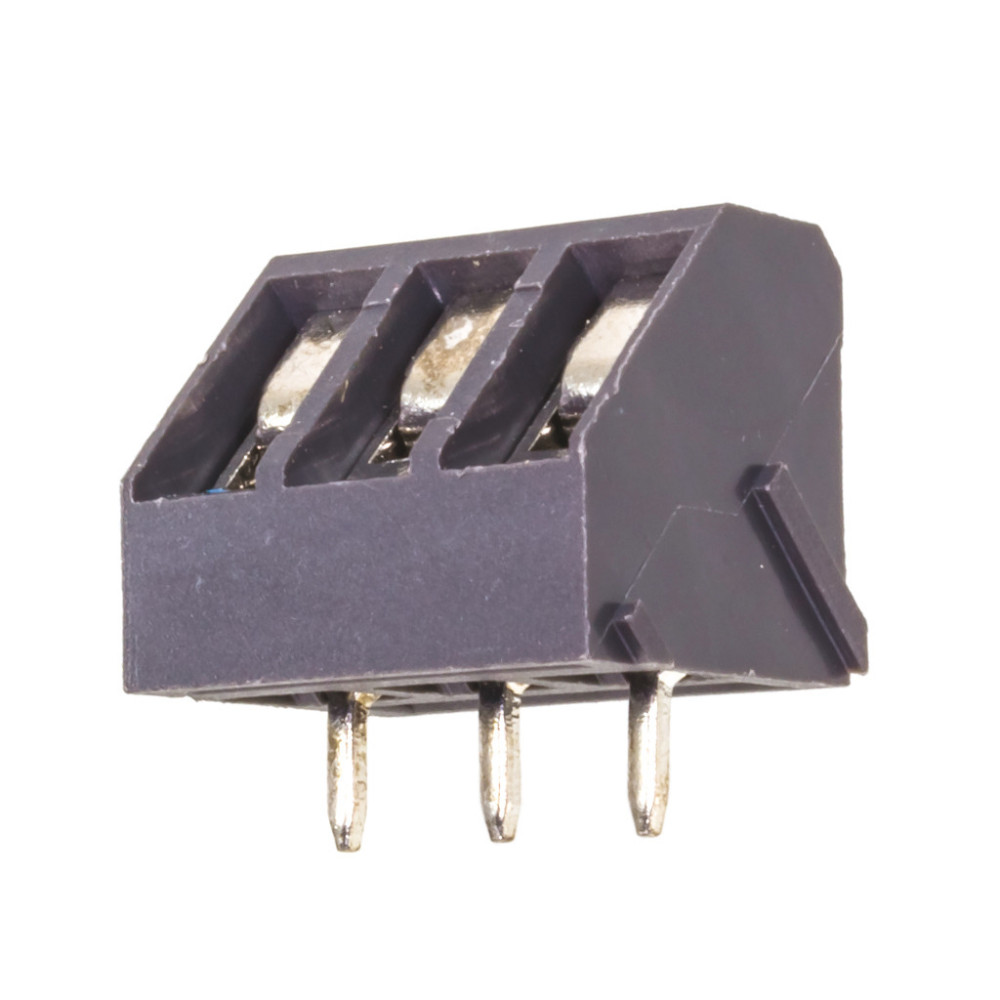

Terminal Block, 3-pole for PCB 45° RM=5mm Grey, 12.5mm High
Manufacturer code:
330-031-11-00
Manufacturer:
Datasheet:
Group:
Terminal Blocks - PCB Mount
Component Family:
Product Range:
Case:
Termination Type:
Through-hole technology
Number of Pins:
3
Insulation Voltage [V], Max.:
2.5 kV
Raster measure:
5 mm
Standard:
UL, ROHS
Continual Current [A], Max.:
16 A
Connector Configuration:
1-row, radial, side wire 45°
Connector Type:
Solderable, terminal block
Voltage [V], Max.:
300 V
Cable Diameter [mm], Max:
1.5 mm²
Cable Diameter [mm], Min.:
0.5 mm²
Contact Material:
Brass
Contact Plating:
Tinned
Insulator Material:
PBT
Operating Temperature Min. [°C]:
-30 °C
Operating Temperature Max. [°C]:
+120 °C
ROHS:
Yes
