6319 - akkumulátor tápcsatlakozó , 600V/50A -20..+105°C - ANDERSON POWER

6.7887 €+ VAT
8.6216 € incl. VAT

6319 - akkumulátor tápcsatlakozó , 600V/50A -20..+105°C - ANDERSON POWER

Name: 6319 - akkumulátor tápcsatlakozó , 600V/50A -20..+105°C - ANDERSON POWER
Brand: ANDERSON POWER
SKU: 53-36-06
Price: 8.6216 EUR
Availability: InStock

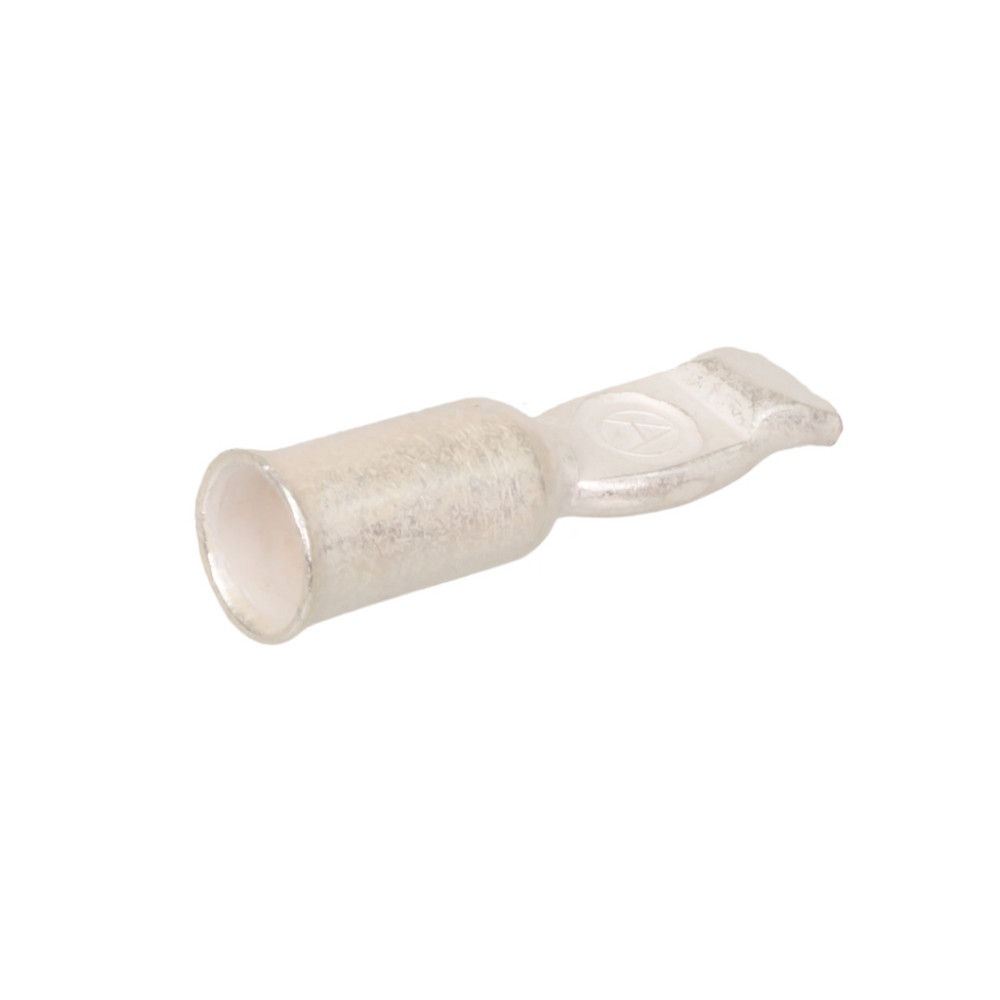

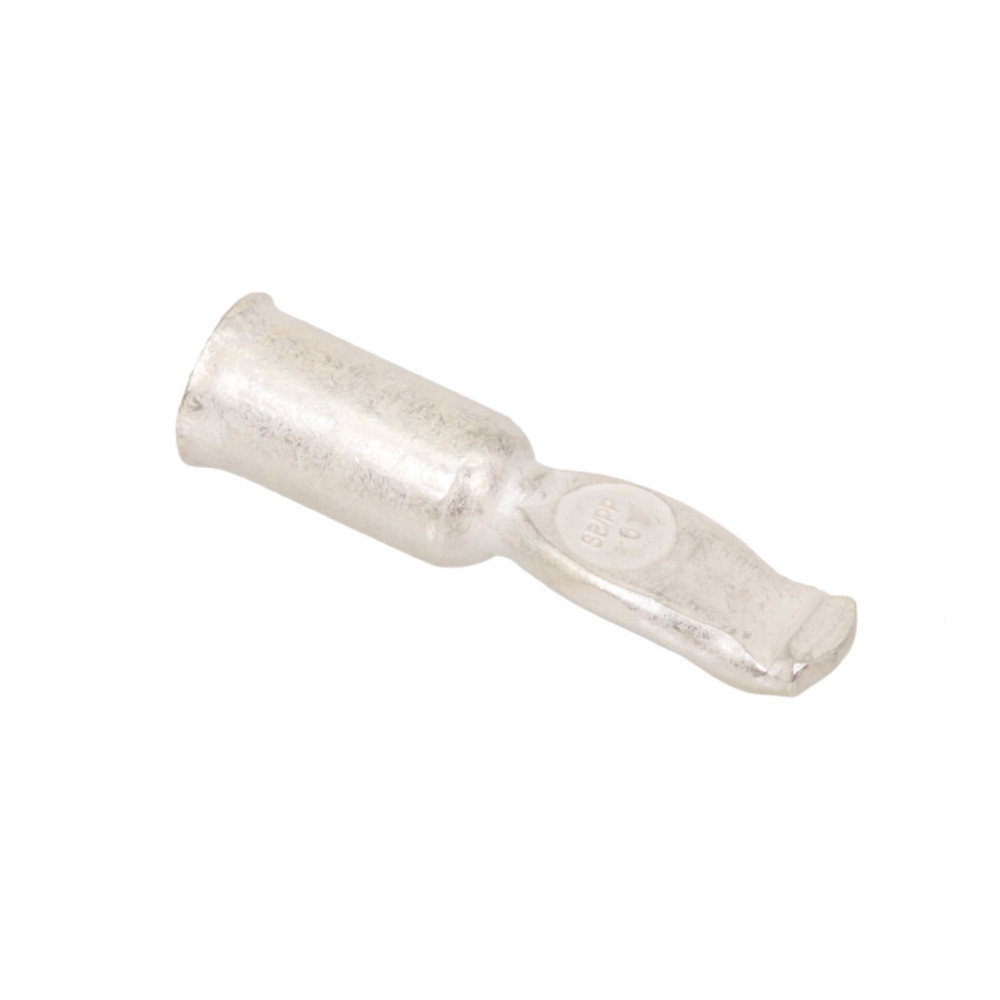

The picture is for illustration purposes only. Please read the product description!

In stock 25 pcs

6.7887 €+ VAT
8.6216 € incl. VAT

Connector, Battery 2-pole Plug, 600V/50A -20..+105°C

Manufacturer code:

6319

Manufacturer:

ANDERSON POWER

Datasheet:

ds-sb50.pdf

Group:

Industrial Connectors - Other

Component Family:

Industrial connector

Product Range:

SB50

Case:

Swinging

Termination Type:

Plug housing

Number of Pins:

Insulation Voltage [V], Max.:

2200 V

Continual Current [A], Max.:

50 A

Contact Resistance [Ohm]:

0.2 mOhm

Connector Configuration:

straight

Connector Type:

Mountable plug

Voltage [V], Max.:

600 V

Cable Diameter [mm], Max:

13 mm²

Cable Diameter [mm], Min.:

1.3 mm²

Contact Material:

Brass

Contact Plating:

Silvered

Insulator Material:

Polycarbonate

Operating Temperature Min. [°C]:

-20 °C

Operating Temperature Max. [°C]:

+105 °C

ROHS:

Yes

pcs

Our Warehouse

25 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)
