41612-48ABC-FS - csatlakozó, DIN41612 48-pólusú aljzat A+B+C - NONAME

3.8258 €+ VAT
4.8587 € incl. VAT

41612-48ABC-FS - csatlakozó, DIN41612 48-pólusú aljzat A+B+C - NONAME

Name: 41612-48ABC-FS - csatlakozó, DIN41612 48-pólusú aljzat A+B+C - NONAME
Brand: NONAME
SKU: 53-30-72
Price: 4.8587 EUR
Availability: InStock

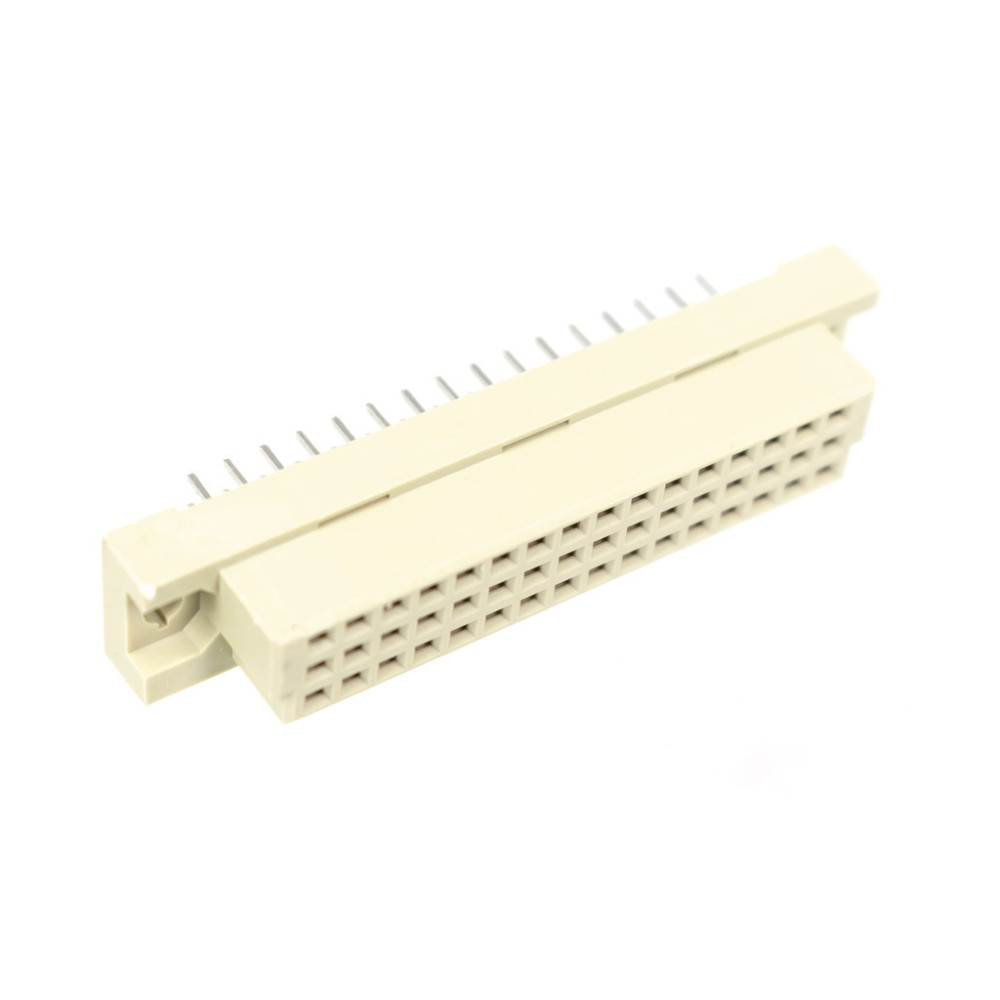

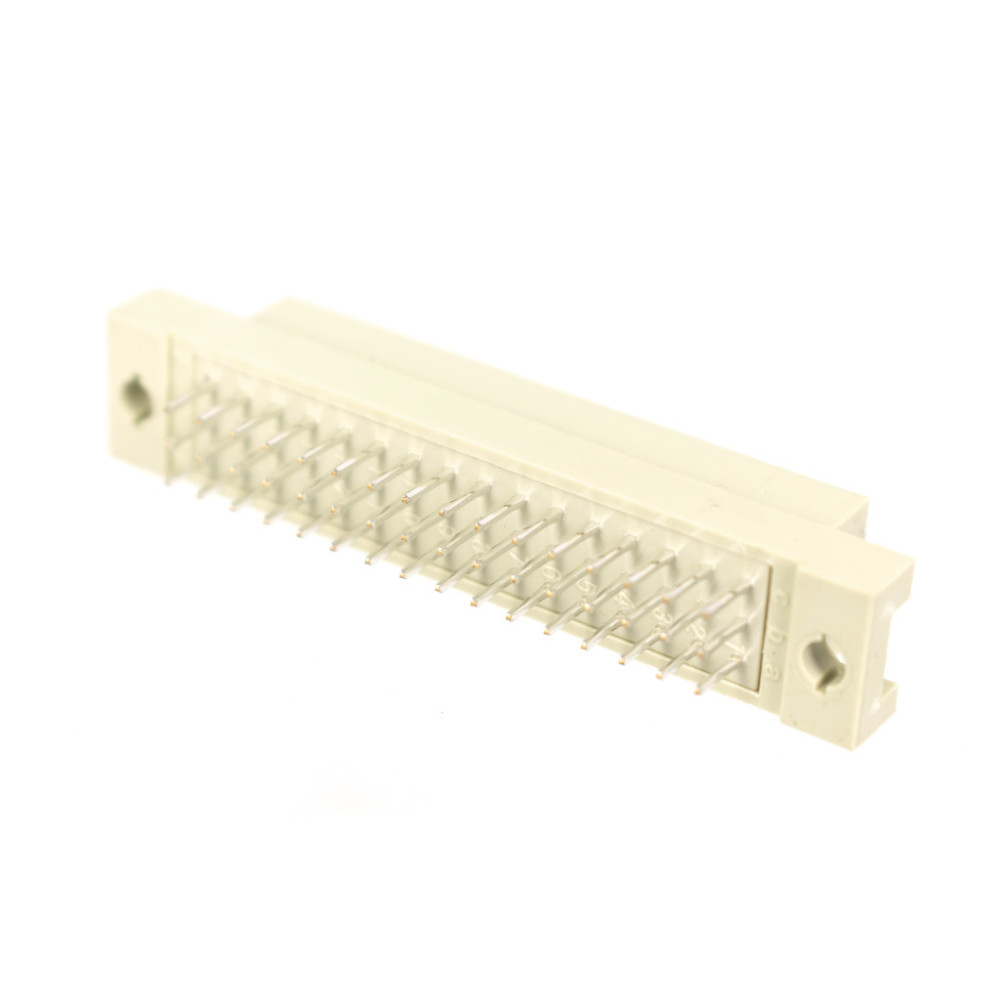

The picture is for illustration purposes only. Please read the product description!

In stock 48 pcs

3.8258 €+ VAT
4.8587 € incl. VAT

Connector, DIN41612 48-pin socket A+B+C

Manufacturer code:

41612-48ABC-FS

Manufacturer:

NONAME

Datasheet:

1680012.pdf

Group:

Industrial Connectors - DIN 41612 Standard

Component Family:

Connector, DIN41612-standard

Product Range:

CF32

Case:

PCB-mountable

Termination Type:

Through-hole technology

Number of Pins:

Raster measure:

2.54 mm

Continual Current [A], Max.:

2 A

Contact Resistance [Ohm]:

20 mOhm

Connector Configuration:

Radial, straight connection

Connector Type:

PCB-mountable socket

Voltage [V], Max.:

250 V

Contact Material:

Copper alloy

Contact Plating:

Gold-plated

Insulator Material:

PBT UL 94V-0

Operating Temperature Min. [°C]:

-55 °C

Operating Temperature Max. [°C]:

+125 °C

ROHS:

Yes

pcs

Our Warehouse

48 pcs

Available for immediate delivery

Info

Weight:

7.9 g/pcs
