304-80064-01 - csatlakozó, 30-pólusú aljzat DIN41612, A+B+C - EPT CONNECTORS

4.3019 €+ VAT
5.4634 € incl. VAT

304-80064-01 - csatlakozó, 30-pólusú aljzat DIN41612, A+B+C - EPT CONNECTORS

Name: 304-80064-01 - csatlakozó, 30-pólusú aljzat DIN41612, A+B+C - EPT CONNECTORS
Brand: EPT CONNECTORS
SKU: 53-30-02
Price: 5.4634 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 37 pcs

4.3019 €+ VAT
5.4634 € incl. VAT

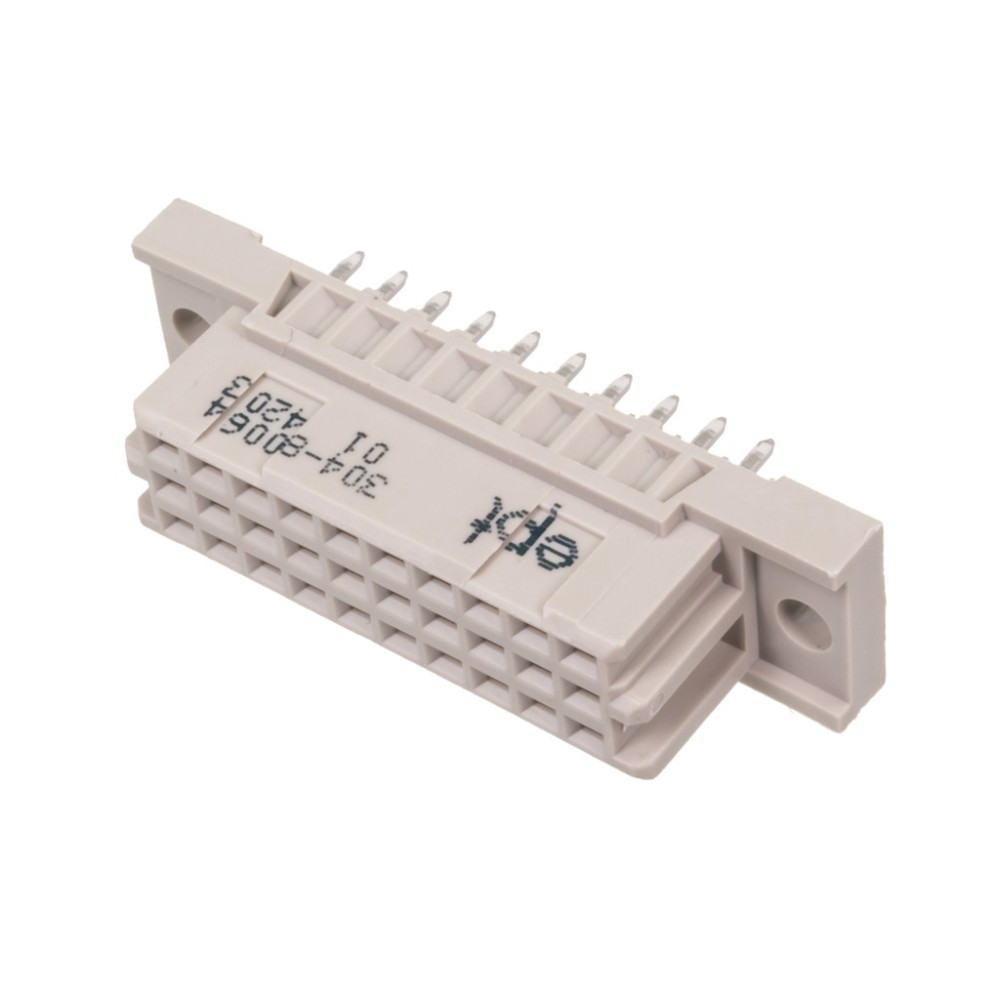

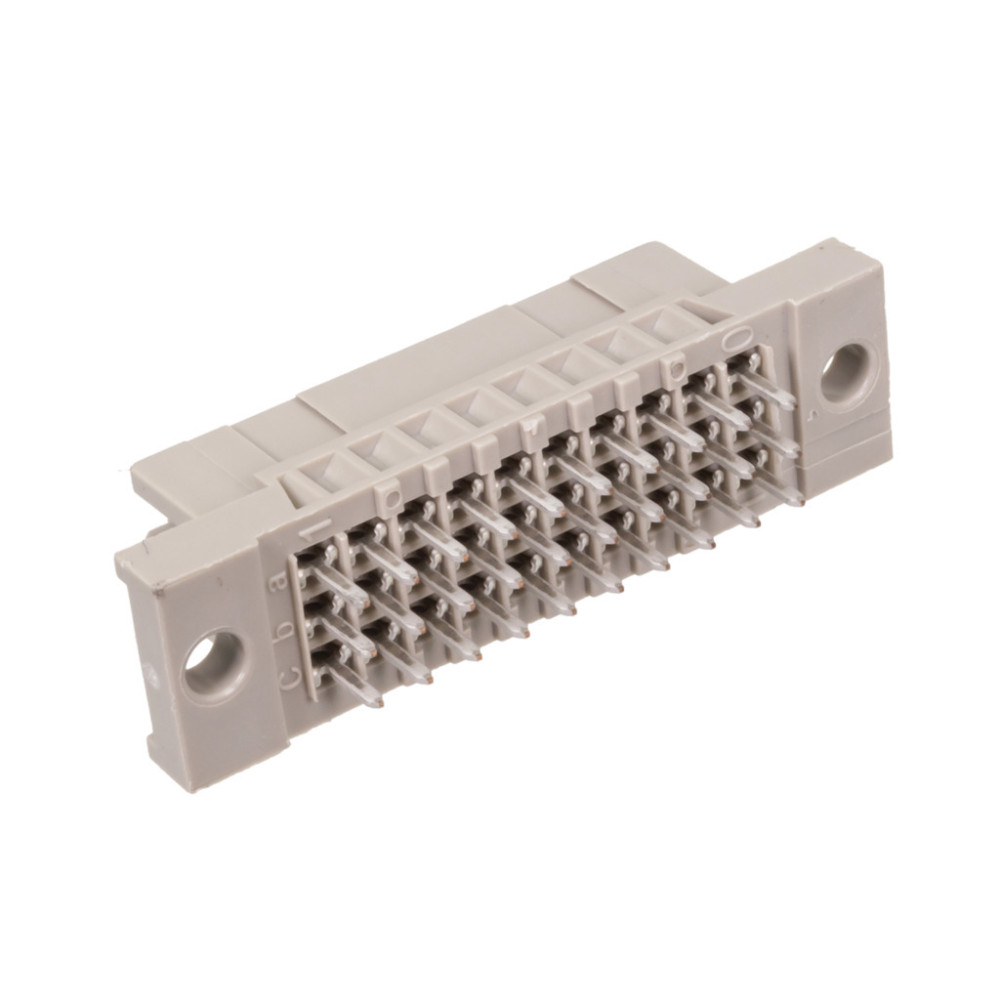

Connector, 30-pole Socket, DIN41612, A+B+C

Manufacturer code:

304-80064-01

Manufacturer:

EPT CONNECTORS

Datasheet:

ept_304-80064-01_C_02.pdf

Group:

Industrial Connectors - DIN 41612 Standard

Component Family:

Connector, DIN41612-standard

Product Range:

304

Case:

PCB-mountable

Termination Type:

Through-hole technology

Number of Pins:

Raster measure:

2.54 mm

Continual Current [A], Max.:

1.5 A

Contact Resistance [Ohm]:

20 mOhm

Connector Configuration:

Radial, straight connection

Connector Type:

PCB-mountable socket

Contact Material:

Copper alloy

Insulator Material:

PBT UL 94V-0

Operating Temperature Min. [°C]:

-55 °C

Operating Temperature Max. [°C]:

+125 °C

ROHS:

Yes

pcs

Our Warehouse

37 pcs

Available for immediate delivery

Info

Additional Datasheet:

304-80064-01_en.pdf

Weight:

5.15 g/pcs
