4304.6090 - beépíthető hálózati dugó, + biztosíték foglalat és kapcsoló, 4.8mm FASTON 250V/6,3A - SCHURTER

10.3774 €+ VAT
13.1793 € incl. VAT

4304.6090 - beépíthető hálózati dugó, + biztosíték foglalat és kapcsoló, 4.8mm FASTON 250V/6,3A - SCHURTER

Name: 4304.6090 - beépíthető hálózati dugó, + biztosíték foglalat és kapcsoló, 4.8mm FASTON 250V/6,3A - SCHURTER
Brand: SCHURTER
SKU: 65-10-57
Price: 13.1793 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

Crimp Terminal - 4,8 mm Quick Connect Fuses - Cylindrical 5x20 mm

In stock 142 pcs

10.3774 €+ VAT
13.1793 € incl. VAT

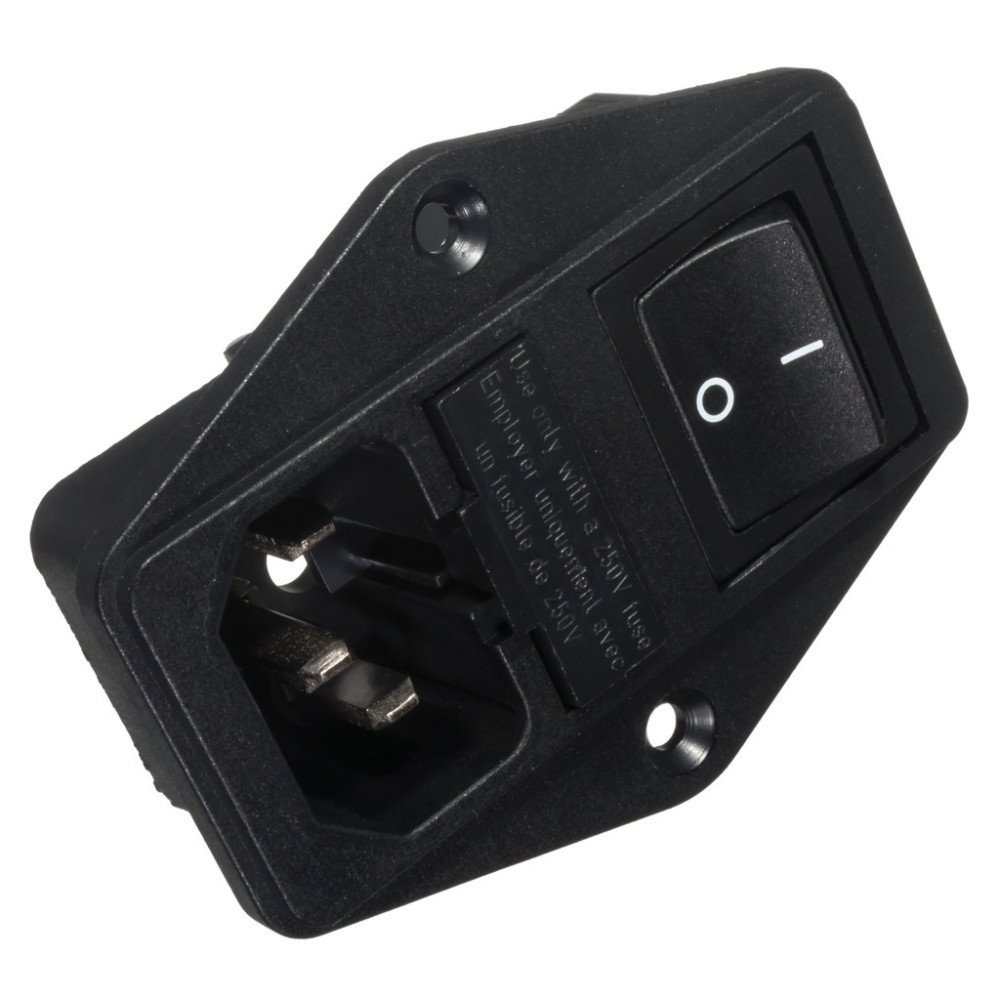

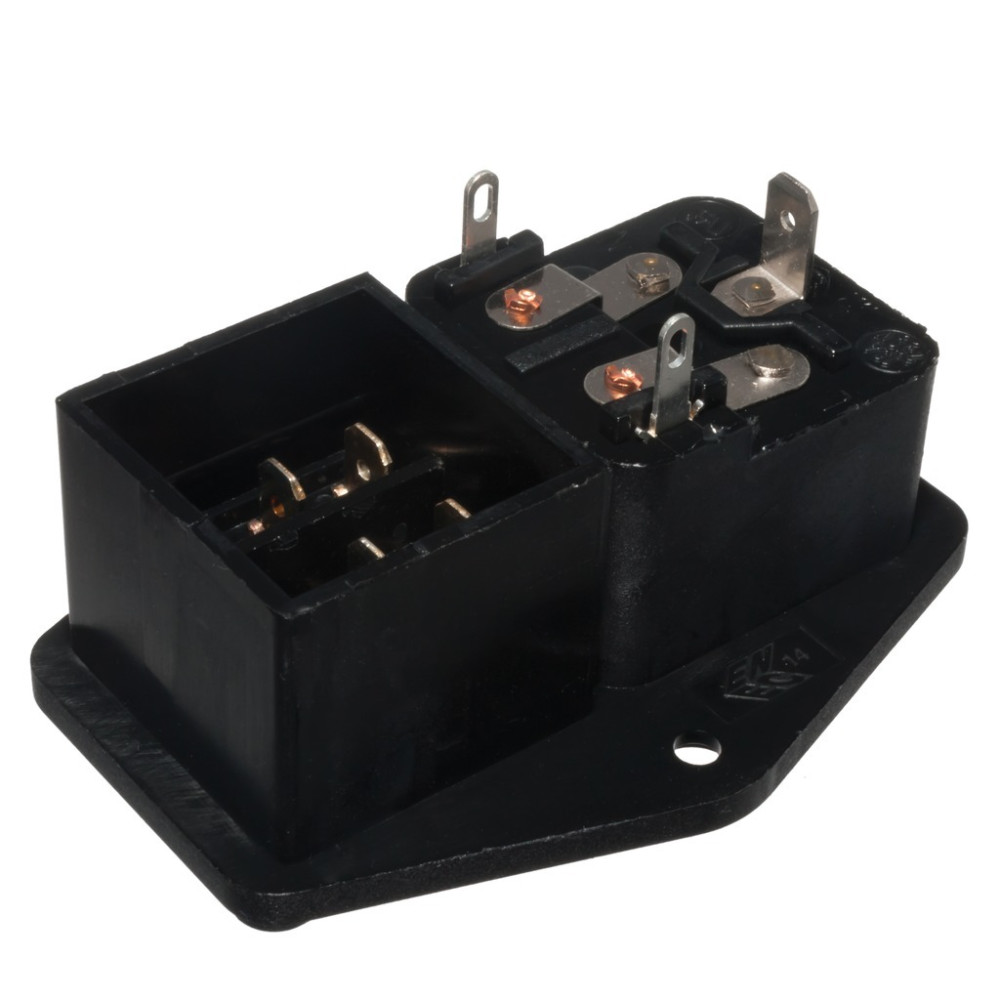

Connector, Inlet IEC, + Fuse Holder with Switch, 4.8mm FASTON 250V/6,3A

Manufacturer code:

4304.6090

Manufacturer:

SCHURTER

Datasheet:

typ_6765.pdf

Group:

Mains Connectors - Panel Mount

Component Family:

Mains connector

Product Range:

6765

Case:

mountable

Termination Type:

Quick-connect 4.8mm, FASTON .187

Number of Pins:

Standard:

UL, CSA

Voltage [V]:

250 V

Continual Current [A], Max.:

10 A

Connector Configuration:

Screwy w. switch and fuse holder

Connector Type:

Mountable plug

Insulator Material:

PA 6

Operating Temperature Min. [°C]:

-25 °C

Operating Temperature Max. [°C]:

+70 °C

ROHS:

Yes

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

7,57 €

9,61 €

Our Warehouse

142 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_L_053.pdf ROHS_Schurter.pdf

Weight:

32.85 g/pcs
