4304.6040 - beépíthető hálózati dugó, 250V/10(15)A VDE, UL. kapcsolóval, forrfüles bepattintható - OTTO HEIL

3.589 €+ VAT
4.558 € incl. VAT

4304.6040 - beépíthető hálózati dugó, 250V/10(15)A VDE, UL. kapcsolóval, forrfüles bepattintható - OTTO HEIL

Name: 4304.6040 - beépíthető hálózati dugó, 250V/10(15)A VDE, UL. kapcsolóval, forrfüles bepattintható - OTTO HEIL
Brand: OTTO HEIL
SKU: 53-19-10
Price: 4.558 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 77 pcs

End of Life

3.589 €+ VAT
4.558 € incl. VAT

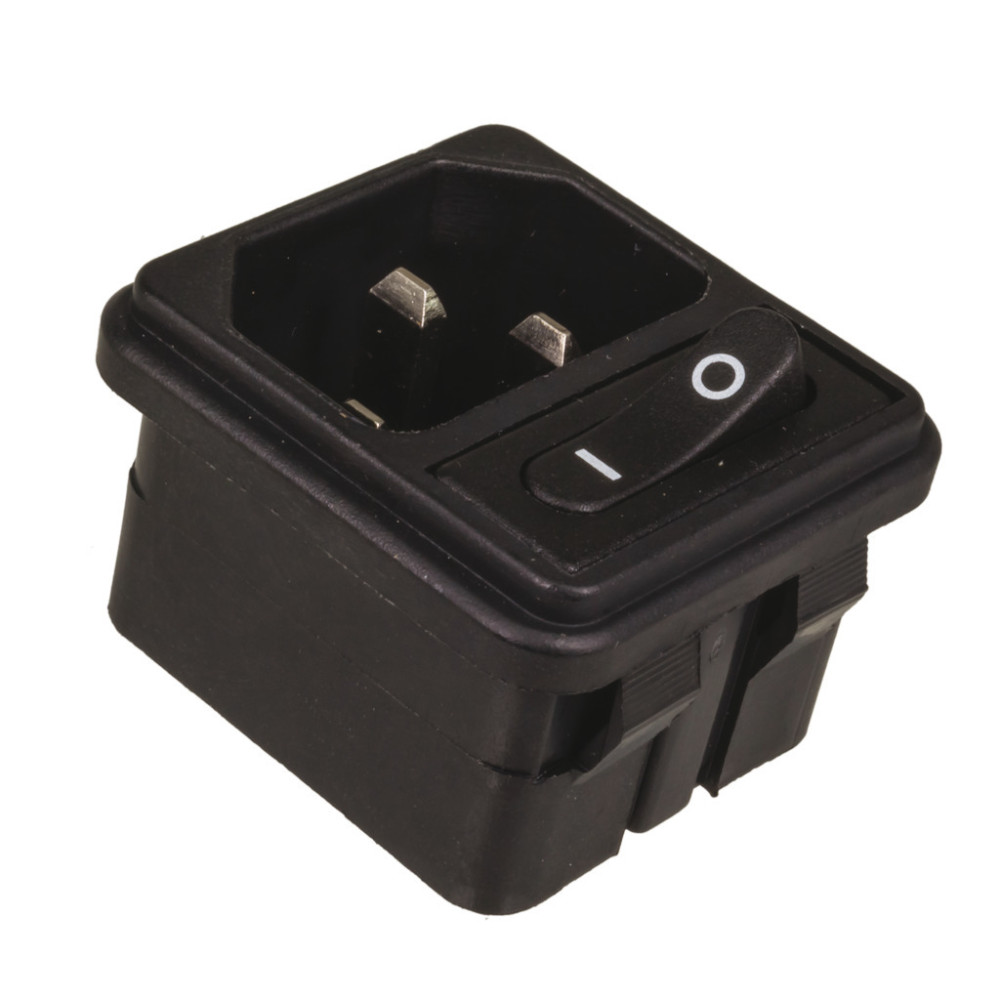

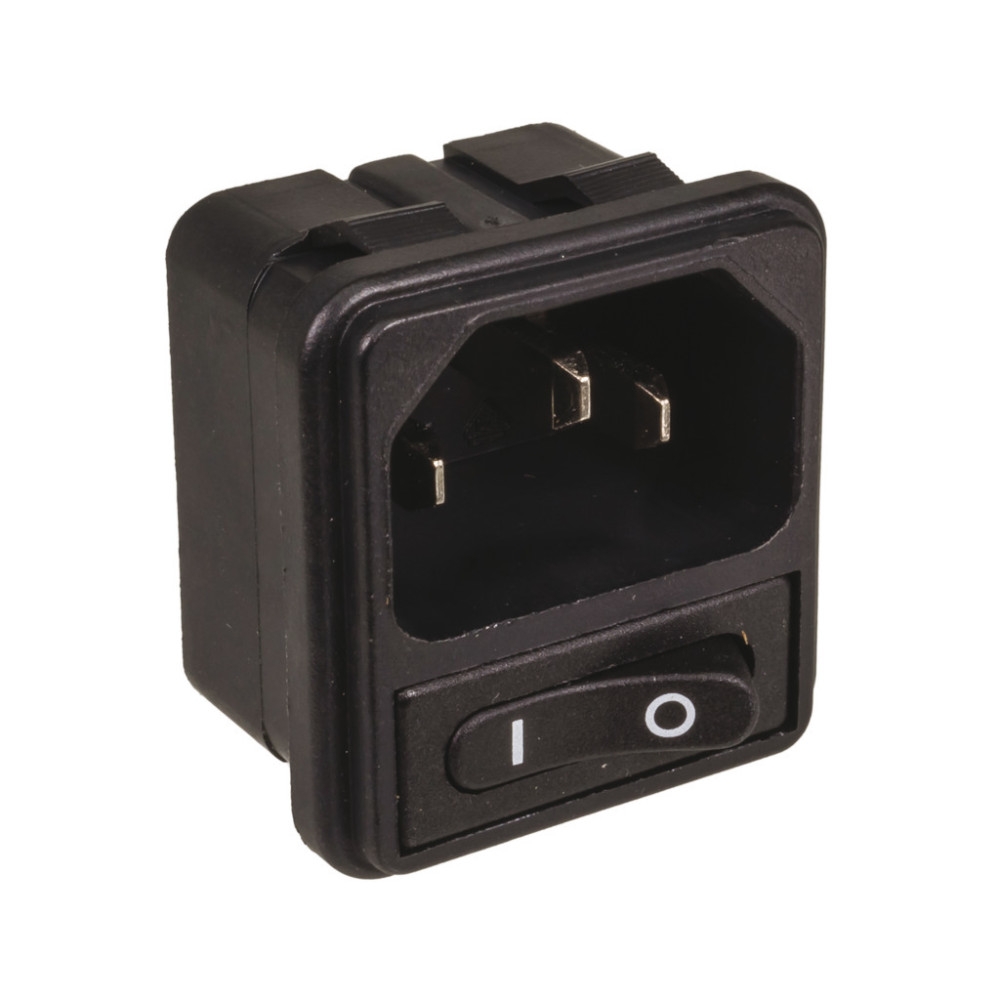

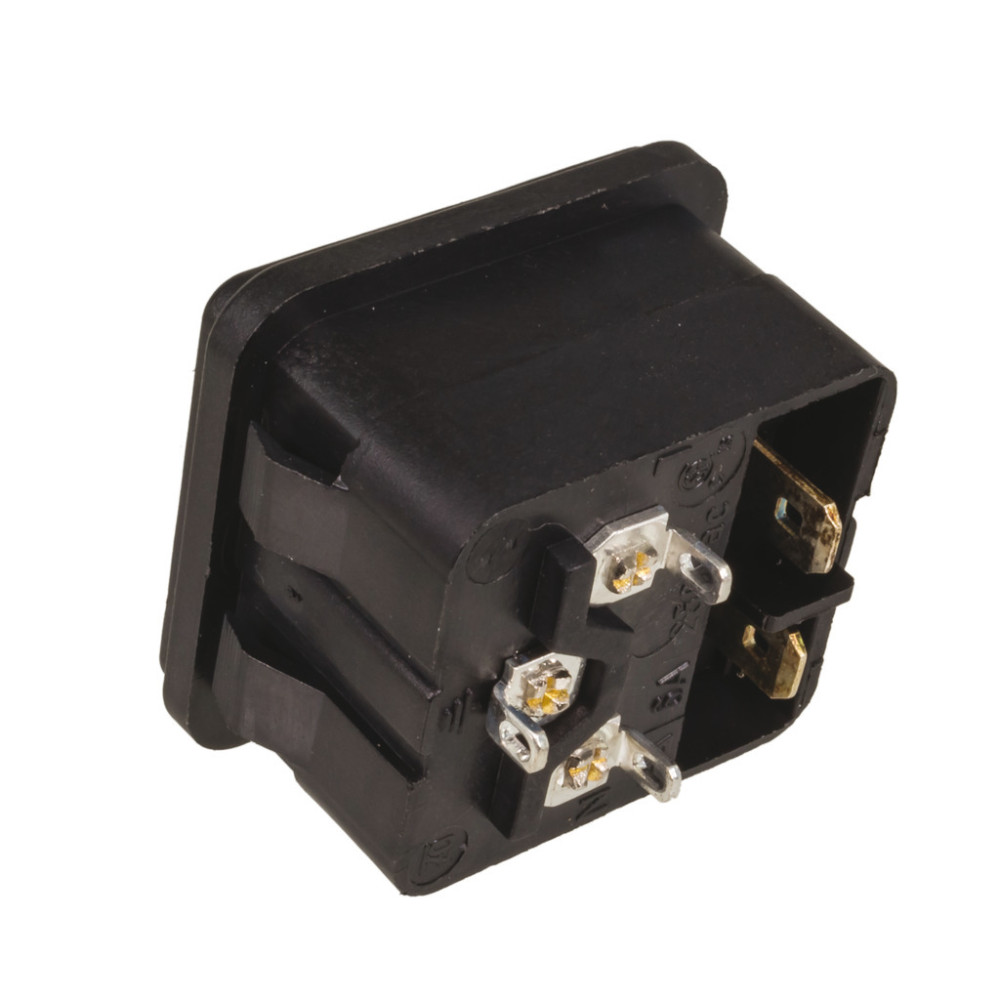

Connector, Inlet IEC, 250V/10(15)A VDE, UL. Snap-In with Switch, with Solder Lug

Manufacturer code:

4304.6040

Manufacturer:

OTTO HEIL

Datasheet:

typ_1074.pdf

Group:

Mains Connectors - Panel Mount

Component Family:

Mains connector

Product Range:

1074

Case:

mountable

Termination Type:

Solder tab

Number of Pins:

Standard:

UL, CSA, VDE

Voltage [V]:

250 V

Continual Current [A], Max.:

10 A/6 A

Connector Configuration:

Snap-in, w. switch

Connector Type:

Mountable plug

Insulator Material:

PA 6

Operating Temperature Min. [°C]:

-25 °C

Operating Temperature Max. [°C]:

+70 °C

ROHS:

Yes

pcs

Our Warehouse

77 pcs

Available for immediate delivery

Info

Additional Datasheet:

ROHS_Schurter.pdf
