4304.6017 - beépíthető hálózati dugó, 250V/10(15)A VDE, UL 2 biztosíték házzal - OTTO HEIL

5.2162 €+ VAT
6.6246 € incl. VAT

4304.6017 - beépíthető hálózati dugó, 250V/10(15)A VDE, UL 2 biztosíték házzal - OTTO HEIL

Name: 4304.6017 - beépíthető hálózati dugó, 250V/10(15)A VDE, UL 2 biztosíték házzal - OTTO HEIL
Brand: OTTO HEIL
SKU: 53-15-74
Price: 6.6246 EUR
Availability: InStock

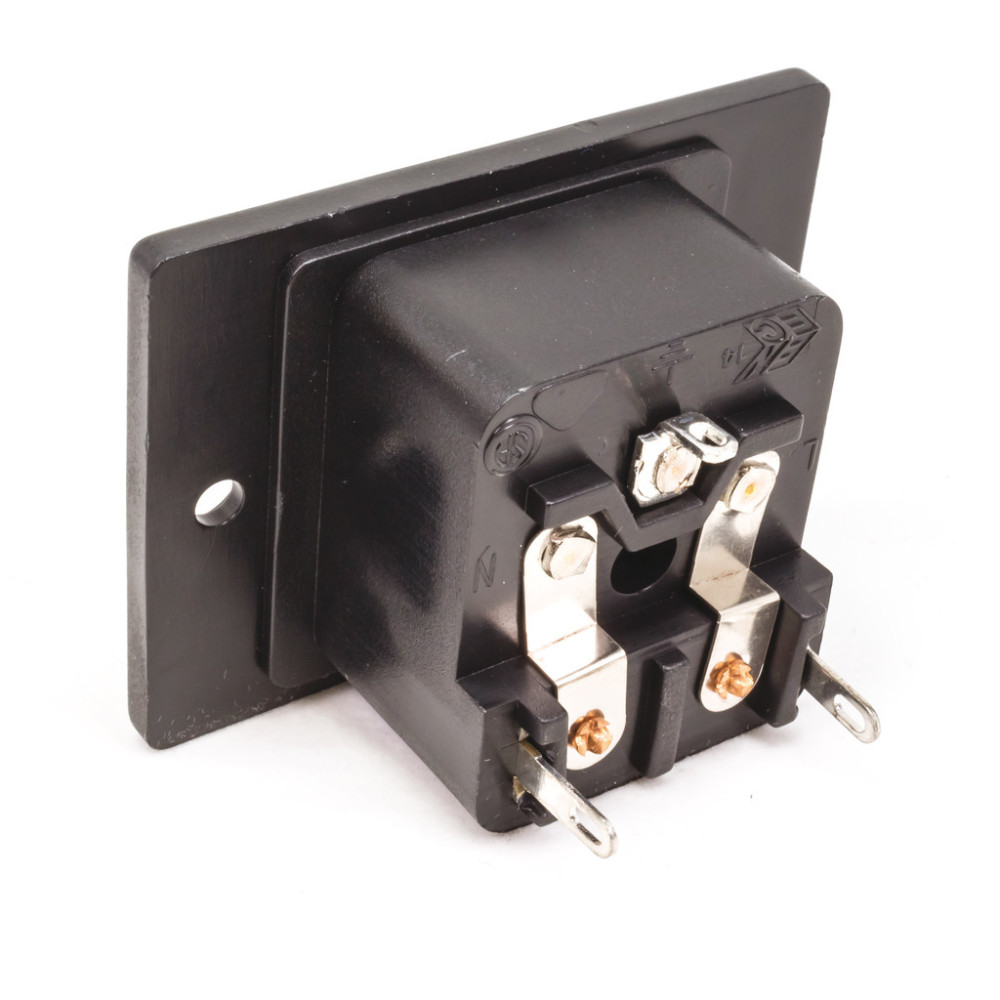

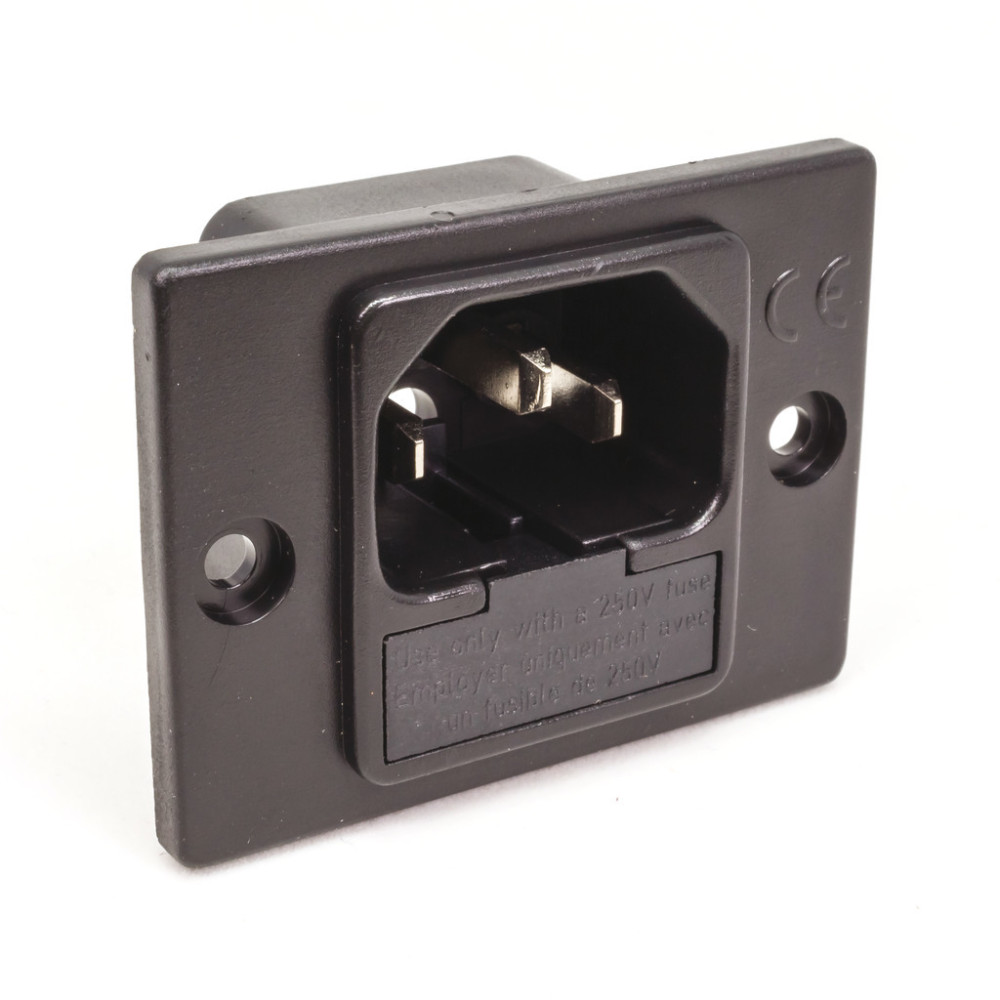

The picture is for illustration purposes only. Please read the product description!

Fuses - Cylindrical 5x20 mm

In stock 2 pcs

5.2162 €+ VAT
6.6246 € incl. VAT

Connector, Inlet IEC, 250V/10(15)A VDE, UL 2 Fuse Holder

Manufacturer code:

4304.6017

Manufacturer:

OTTO HEIL

Datasheet:

typ_1062.pdf

Group:

Mains Connectors - Panel Mount

Component Family:

Mains connector

Product Range:

1062

Case:

mountable

Termination Type:

Solder tab

Number of Pins:

Standard:

UL, CSA

Voltage [V]:

250 V

Continual Current [A], Max.:

10 A

Connector Configuration:

Screwy w. fuse holder

Connector Type:

Mountable plug

Insulator Material:

PA 6

Operating Temperature Min. [°C]:

-25 °C

Operating Temperature Max. [°C]:

+70 °C

ROHS:

Yes

pcs

Our Warehouse

2 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_L_052.pdf ROHS_Schurter.pdf
