AWD127-14/Z-T - csatlakozó aljzat LPV 14-hez - ASSMANN

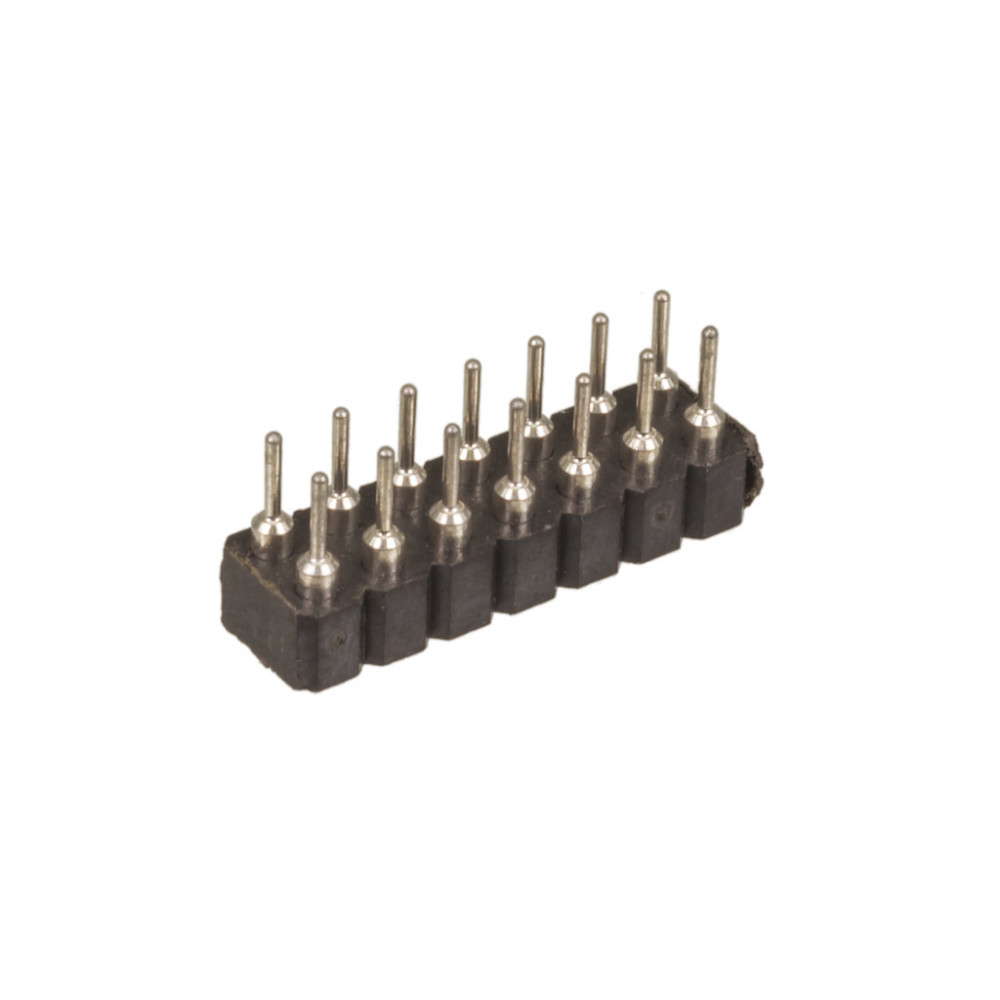

The picture is for illustration purposes only. Please read the product description!
In stock 23 pcs
0.4902 €+ VAT
0.6226 € incl. VAT
0.6226 € incl. VAT
Socket for LPV 14
Manufacturer code:
AWD127-14/Z-T
Manufacturer:
Datasheet:
Group:
DIL,LPV Connectors
Component Family:
Product Range:
Case:
Termination Type:
Through-hole technology
Number of Pins:
14
Insulation Voltage [V], Max.:
100 V
Raster measure:
2.54 mm
Continual Current [A], Max.:
3 A
Contact Resistance [Ohm]:
4 mOhm
Connector Configuration:
2-rows, socket
Connector Type:
Solderable, IDC-connection
Voltage [V], Max.:
60 V
Contact Material:
Brass
Contact Plating:
Gold-plated
Insulator Material:
Polyamide
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+105 °C
ROHS:
No
