3644 02 K01 V167 - LUMBERG - 3644 02 K01 V167

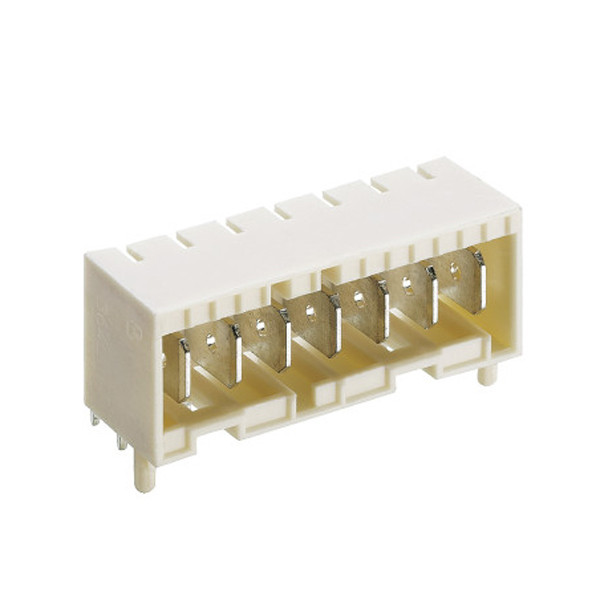

The picture is for illustration purposes only. Please read the product description!
Out of stock
Cable lug for PCB 90° 2-pole
Manufacturer code:
3644 02 K01 V167
Manufacturer:
Datasheet:
Group:
Crimp Terminal - 6,3 mm Quick Connect
Component Family:
Product Range:
Case:
Termination Type:
Solderable/crimp
Number of Pins:
2
Insulation Voltage [V], Max.:
500 V
Dimension Parameters:
6.3x0.8mm
Standard:
DIN 46244
Continual Current [A], Max.:
16 A
Connector Configuration:
Quick-connect terminal, non insulated
Connector Type:
PCB-mountable plug
Contact Material:
Brass
Contact Plating:
Silvered
Insulator Material:
PA GF
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+120 °C
ROHS:
Yes
Our Warehouse
0 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Data
Weight:
1 g/pcs
