6.3 x 0.8 mm 5-160506-1 Crimp Quick Connect FASTON .250 - TE CONNECTIVITY (AMP) - 5-160506-1

0.2877 €+ VAT
0.3653 € incl. VAT

6.3 x 0.8 mm 5-160506-1 Crimp Quick Connect FASTON .250 - TE CONNECTIVITY (AMP) - 5-160506-1

Name: 6.3 x 0.8 mm 5-160506-1 Crimp Quick Connect FASTON .250 - TE CONNECTIVITY (AMP) - 5-160506-1
Brand: TE CONNECTIVITY (AMP)
SKU: 53-13-32
Price: 0.3653 EUR
Availability: InStock

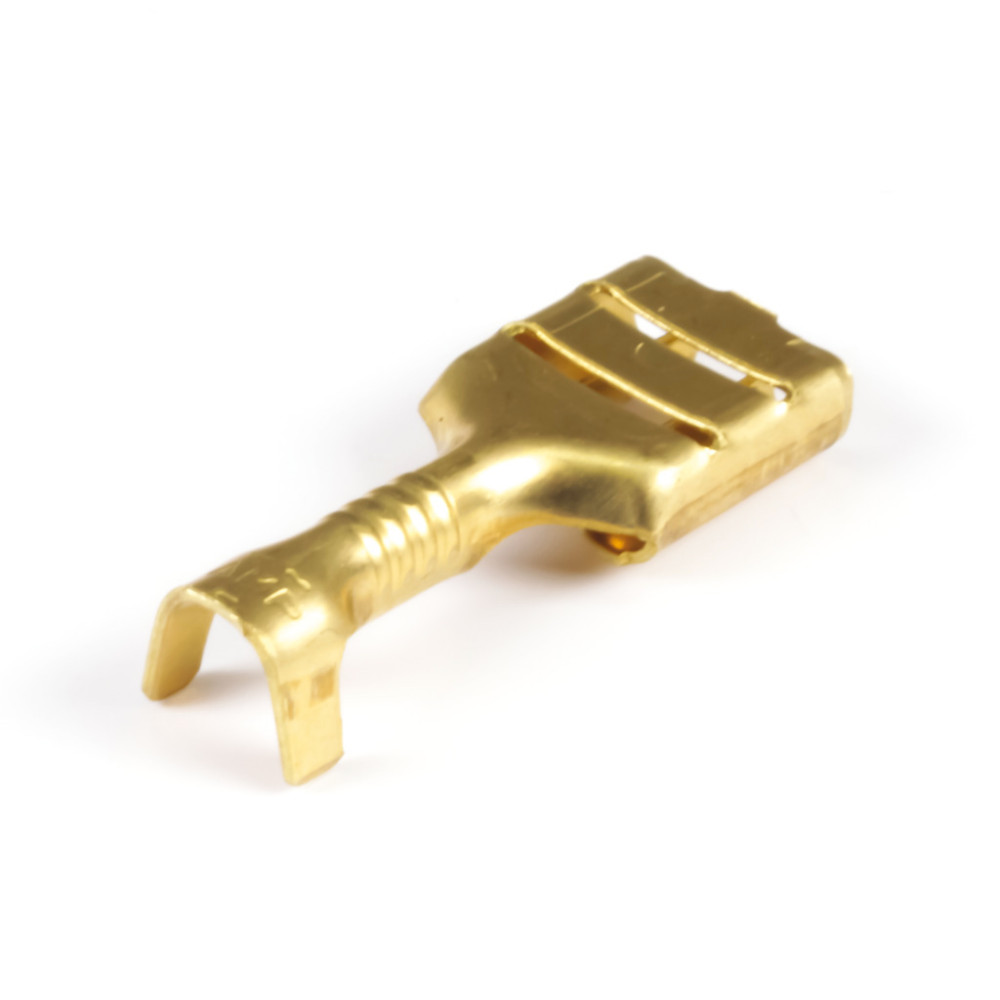

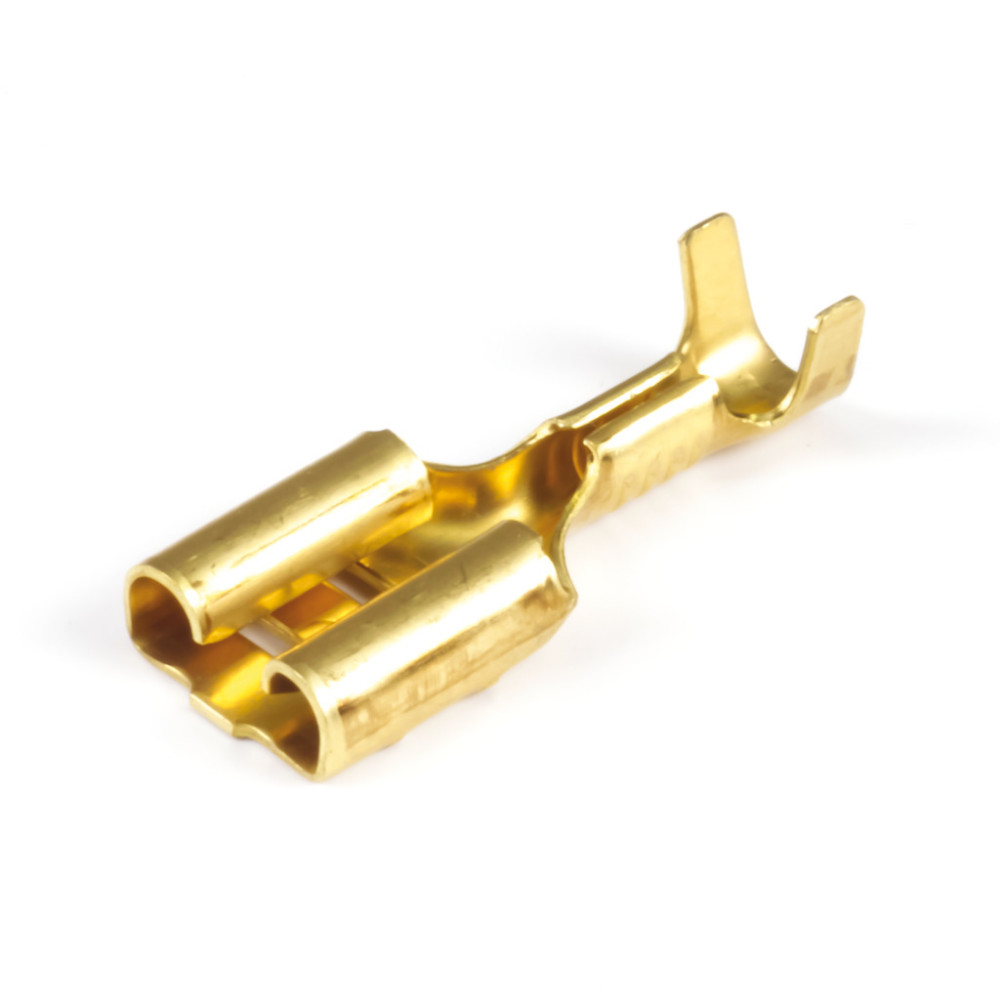

The picture is for illustration purposes only. Please read the product description!

In stock 1271 pcs

0.2877 €+ VAT
0.3653 € incl. VAT

Connector, Crimp Quick Connect type Connector

Manufacturer code:

5-160506-1

Manufacturer:

TE CONNECTIVITY (AMP)

Datasheet:

5-160506-1.pdf

Group:

Crimp Terminal - 6,3 mm Quick Connect

Component Family:

Connector 6.3mm Quick-connect

Product Range:

160506

Case:

mountable

Termination Type:

Solderable/crimp

Number of Pins:

Dimension Parameters:

6.3x0.8mm

Standard:

UL, CSA

Connector Configuration:

Quick-connect terminal, non insulated

Connector Type:

Socket, swinging type

Cable Diameter [mm], Max:

1.5 mm²

Cable Diameter [mm], Min.:

0.5 mm²

Contact Material:

Brass

Contact Plating:

Insulator Material:

Operating Temperature Min. [°C]:

-40 °C

Operating Temperature Max. [°C]:

+110 °C

ROHS:

Yes

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

100

0,22 €

0,28 €

Our Warehouse

1271 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Weight:

0.675 g/pcs
