AD7569JN - 8-bit A/D-konverter + SAMPLE/HOLD DIP24 - ANALOG DEVICES
5.6019 €+ VAT
7.1144 € incl. VAT
7.1144 € incl. VAT
AD7569JN - 8-bit A/D-konverter + SAMPLE/HOLD DIP24 - ANALOG DEVICES

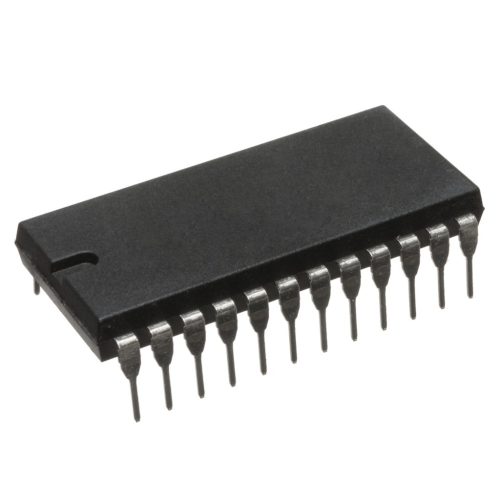

The picture is for illustration purposes only. Please read the product description!
In stock 6 pcs
5.6019 €+ VAT
7.1144 € incl. VAT
7.1144 € incl. VAT
Peripheral IC, 8-bit A/D-converter + Sample/Hold DIP24
Manufacturer code:
AD7569JN
Manufacturer:
Datasheet:
Group:
A/D-converter
Component Family:
Case Style:
PCB-mountable
Case:
Termination Type:
Through-hole technology
Number of Pins:
24
Number of Input Channels:
1
Analog Input Type:
Bipolar/unipolar
Circuit Type:
A/D and D/A-converter
Number of Circuits:
1
Internal Reference [V]:
+1.25 V
Resolution:
8-bit
Interface Type:
Parallel
External Reference, Max.[V]:
Internal ref.
External Reference, Min. [V]:
Belső ref.
Conversion Rate, Max. [sample]:
2 µs
Analog Supply Voltage, Max. [V]:
5.25 V/±5.25 V
Analog Supply Voltage, Min. [V]:
4.75 V/±4.75 V
Digital Supply Voltage, Max. [V]:
5.25 V/±5.25 V
Digital Supply Voltage, Min. [V]:
4.75 V/±4.75 V
Operating Temperature Min. [°C]:
0 °C
Operating Temperature Max. [°C]:
+70 °C
ROHS:
No
pcs
Our Warehouse
6 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Data
Additional Datasheet:
Weight:
1.56 g/pcs
