ESP8266EX – Highly Integrated Wi-Fi SoC (32-bit MCU, TCP/IP stack)

The ESP8266EX is one of Espressif Systems’ most iconic and widely used Wi-Fi chips, which has revolutionized the development of IoT devices. It is a highly integrated SoC (System-on-a-Chip) that incorporates a 32-bit processor, the complete Wi-Fi radio frequency unit, and the TCP/IP protocol stack, enabling it to function either as a standalone controller or as a Wi-Fi adapter for other microcontrollers.

Key Product Features

• High-Performance Processor: Tensilica L106 32-bit RISC microprocessor with a clock speed of up to 160 MHz and an ultra-low-power architecture.
• Full Wi-Fi functionality: 2.4 GHz Wi-Fi (802.11 b/g/n) support, with integrated TR switch, balun, LNA, and power amplifier.
• Super-low power consumption: Special power-saving modes (e.g., Deep-sleep) that reduce current consumption to below 20 μA, making it ideal for battery-powered devices.

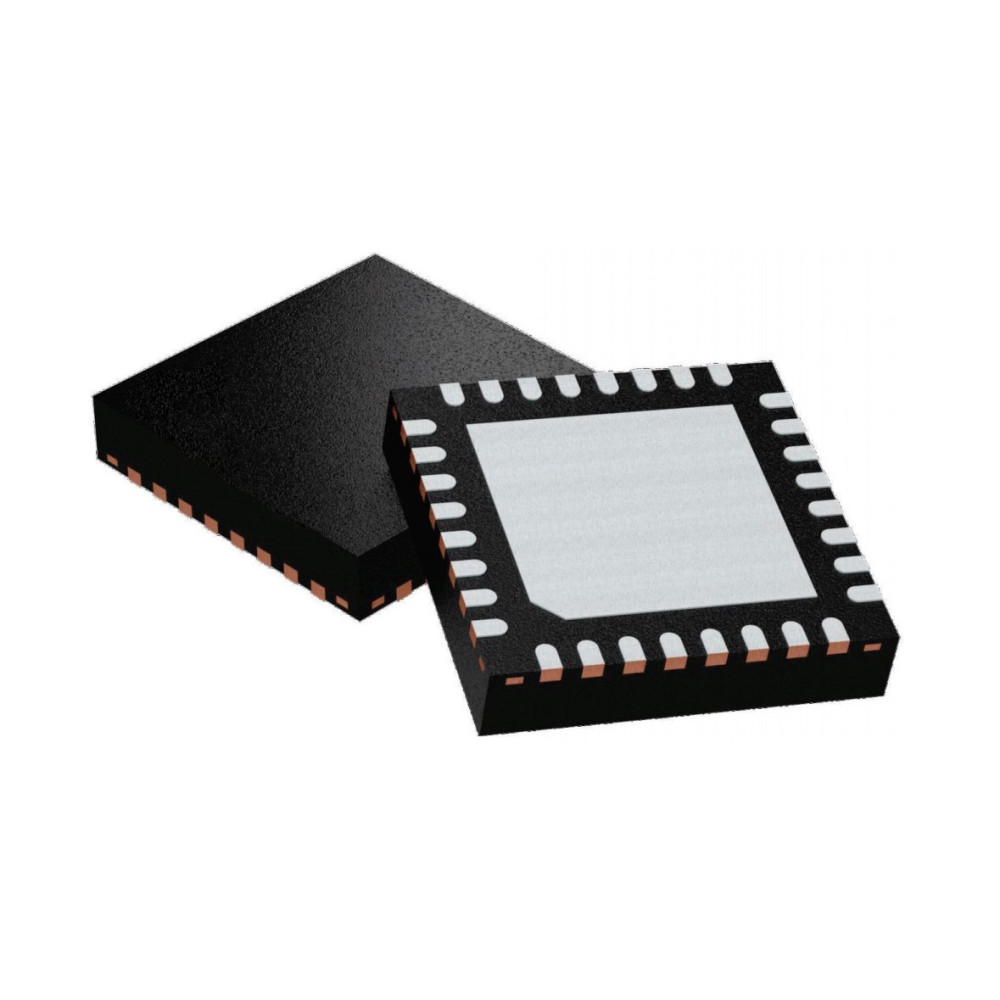

• Compact package: 5 x 5 mm QFN32 package that requires minimal space on the printed circuit board.
• Extensive interface set: Numerous pins (GPIO, UART, SPI, I2C, I2S, PWM) and a 10-bit ADC for direct connection to sensors.

Technical Specifications

Why Choose the ESP8266EX Chip?

The ESP8266EX is the best choice if you’re looking for a cost-effective yet reliable Wi-Fi connection for your project. The integrated automatic gain control (AGC) and excellent noise filtering ensure stable data transmission even in industrial environments. Thanks to the huge developer community and extensive SDK support, development time can be significantly reduced, whether you’re working on simple switches or complex data collection systems.

Applications:

• Smart home devices (smart lights, power outlets, IP cameras)
• Portable electronic devices
• Industrial wireless control and monitoring
• Wi-Fi-based positioning systems (Beacons)

The ESP8266EX chip is the “workhorse” of the IoT world: thanks to its small size, low cost, and versatility, it is an indispensable component in all modern wireless developments.
