TPC8407,LQ(S - 30V 9A + 7.4A 1.1W Rds=0.021/0.029Ohm SMD SO8 N-MOSFET - TOSHIBA

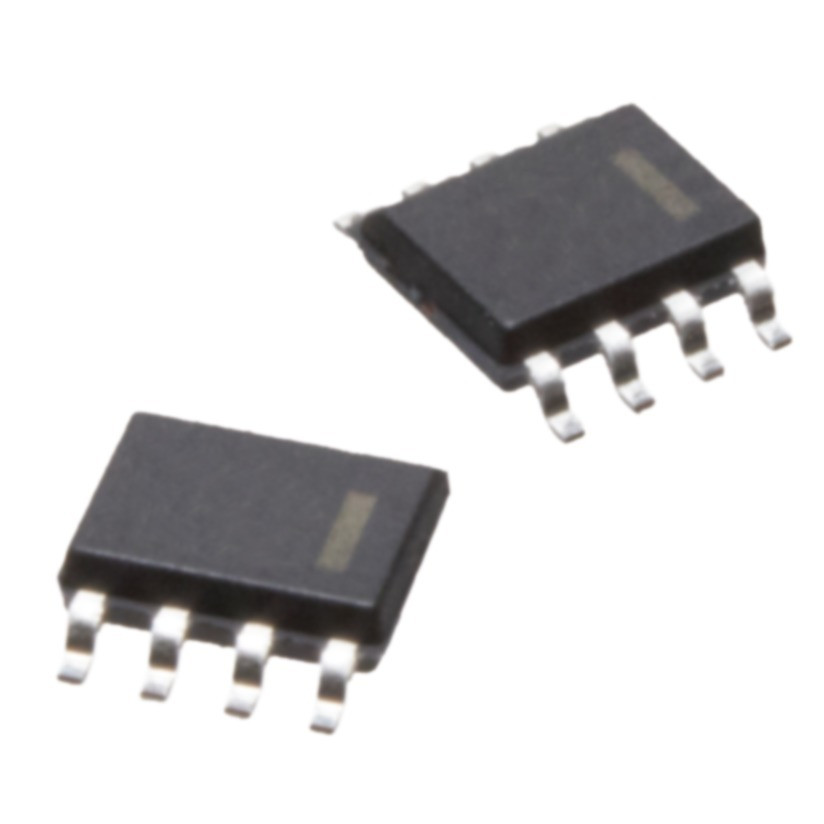

The picture is for illustration purposes only. Please read the product description!
Out of stock
MOSFET, 30V 9A + 7.4A 1.1W Rds=0.021/0.029Ohm SMD SO8
Manufacturer code:
TPC8407,LQ(S
Manufacturer:
Datasheet:
Group:
MOSFETs
Component Family:
Case Style:
Surface Mount (SMD)
Case:
Termination Type:
Surface mount (SMD)
Number of Pins:
8
Power Dissipation Ptot [W], Max:
1.1 W
Manufacturer Code:
TPC8407
Drain Current Id [A] @ 25°C:
9 A/-7.4 A
On Resistance Rds[Ohm] @ Ids [A]:
0.021 Ohm/0.029 Ohm @ 3.7/-3.7 A
Threshold Voltage Ugs[V]:
2.3 V/-2.3 V
Rise Time ton [nsec.]:
7.9 ns/16 ns
Fall time toff [nsec.]:
20/140 ns
Gate Capacitance Ciss [pF]:
1190/1650 pF
Drain-Source Voltage Uds [V]:
30 V/-30 V
Operating Temperature Min. [°C]:
-55 °C
Operating Temperature Max. [°C]:
+150 °C
ROHS:
Yes
Our Warehouse
0 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Data
Weight:
0.851 g/pcs
