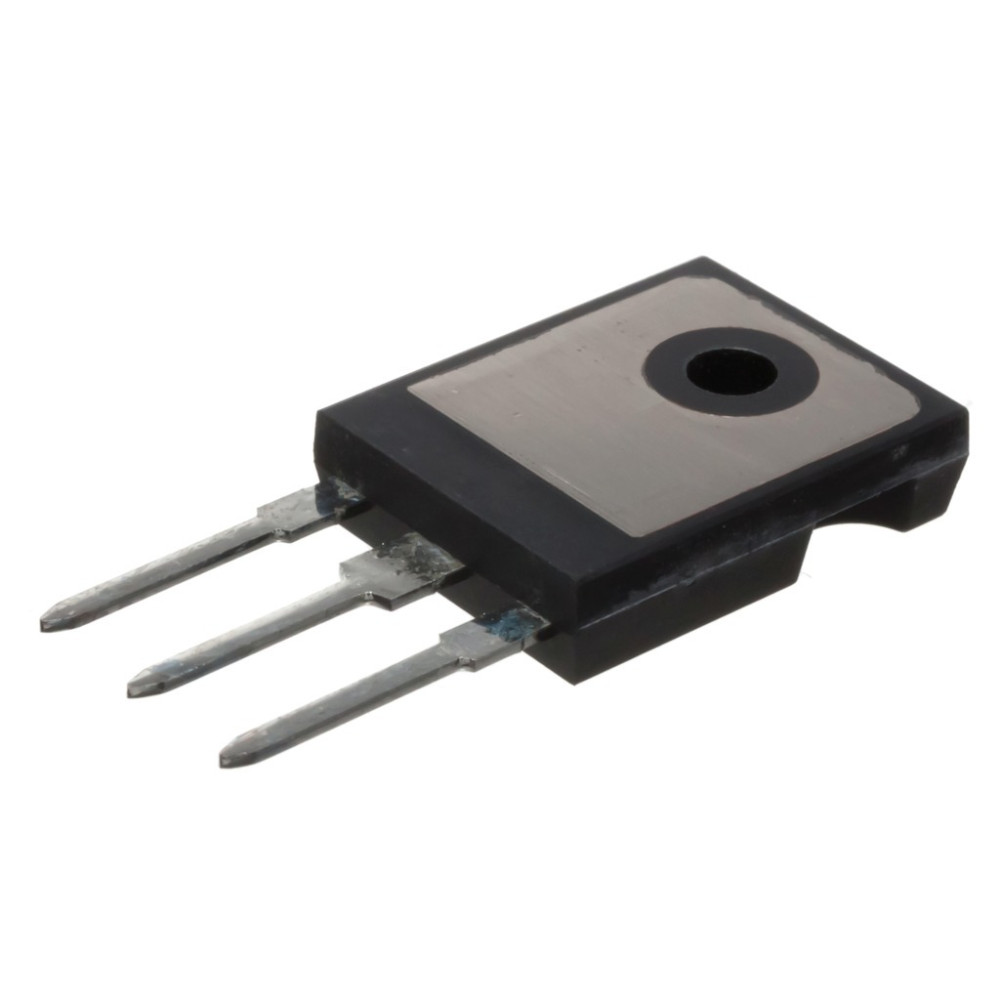

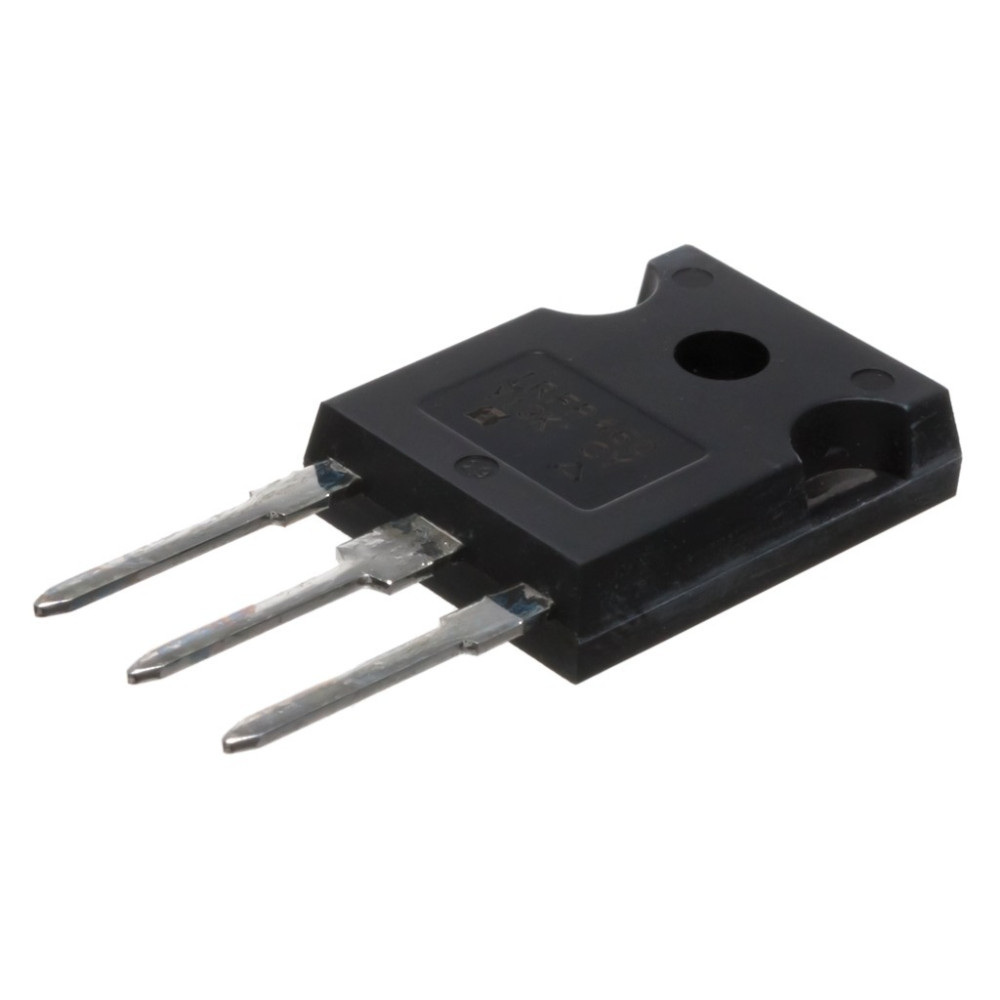

STW20NM50FD - 500V 20A 214W Rdson=0.25Ohm TO-247 N-MOSFET - STMICROELECTRONICS

3.8674 €+ VAT
4.9116 € incl. VAT

STW20NM50FD - 500V 20A 214W Rdson=0.25Ohm TO-247 N-MOSFET - STMICROELECTRONICS

Name: STW20NM50FD - 500V 20A 214W Rdson=0.25Ohm TO-247 N-MOSFET - STMICROELECTRONICS
Brand: STMICROELECTRONICS
SKU: 25-06-34
Price: 4.9116 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 49 pcs

End of Life

3.8674 €+ VAT
4.9116 € incl. VAT

MOSFET, 500V 20A 214W Rdson=0.25Ohm TO-247

Manufacturer code:

STW20NM50FD

Manufacturer:

STMICROELECTRONICS

Datasheet:

5e-STW20NM50FD.pdf

Group:

MOSFETs

Component Family:

MOSFET, N-MOS

Case Style:

PCB-mountable

Case:

TO-247

Termination Type:

Through-hole technology

Number of Pins:

Power Dissipation Ptot [W], Max:

214 W

Manufacturer Code:

W20NM50FD

Drain Current Id [A] @ 25°C:

20 A

On Resistance Rds[Ohm] @ Ids [A]:

0.25 Ohm @ 10 A

Threshold Voltage Ugs[V]:

5 V

Rise Time ton [nsec.]:

22 ns

Fall time toff [nsec.]:

30 ns

Gate Capacitance Ciss [pF]:

1380 pF

Drain-Source Voltage Uds [V]:

500 V

Operating Temperature Min. [°C]:

-65 °C

Operating Temperature Max. [°C]:

+150 °C

ROHS:

Yes

pcs

Our Warehouse

49 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Weight:

4.43 g/pcs
