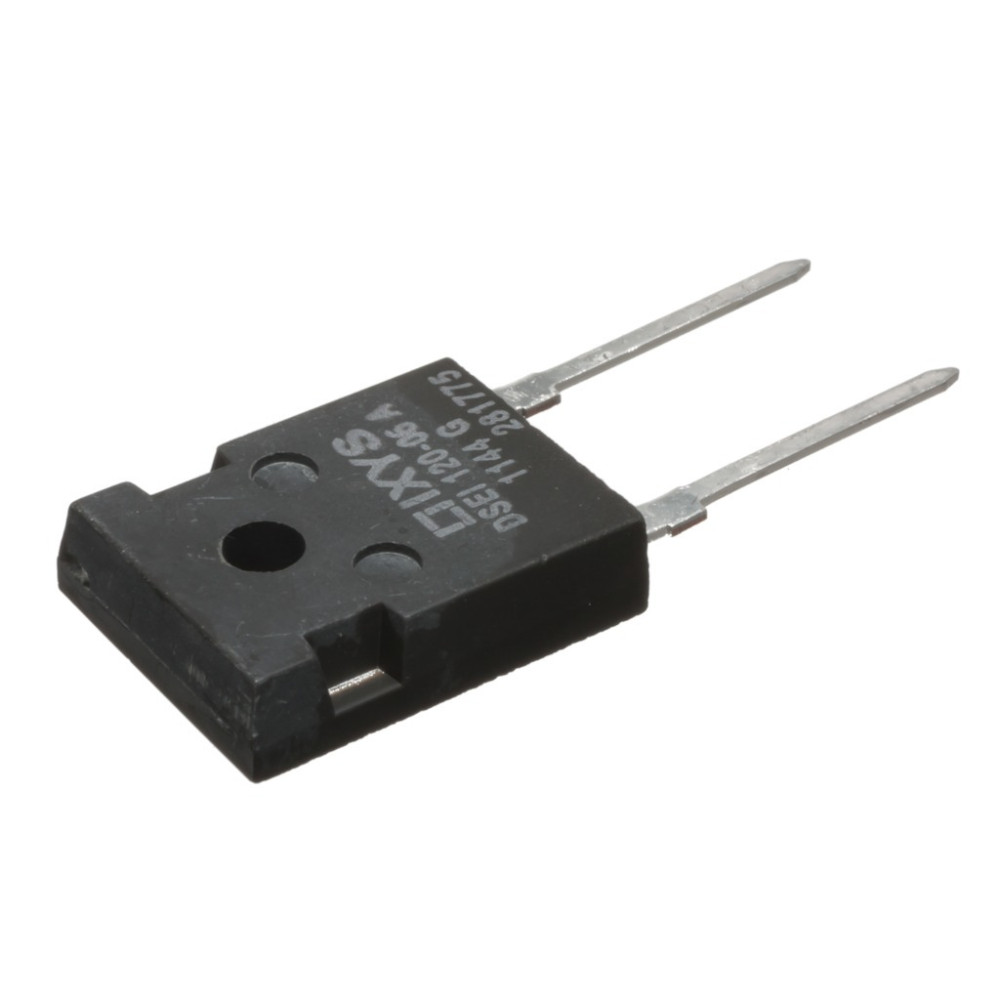

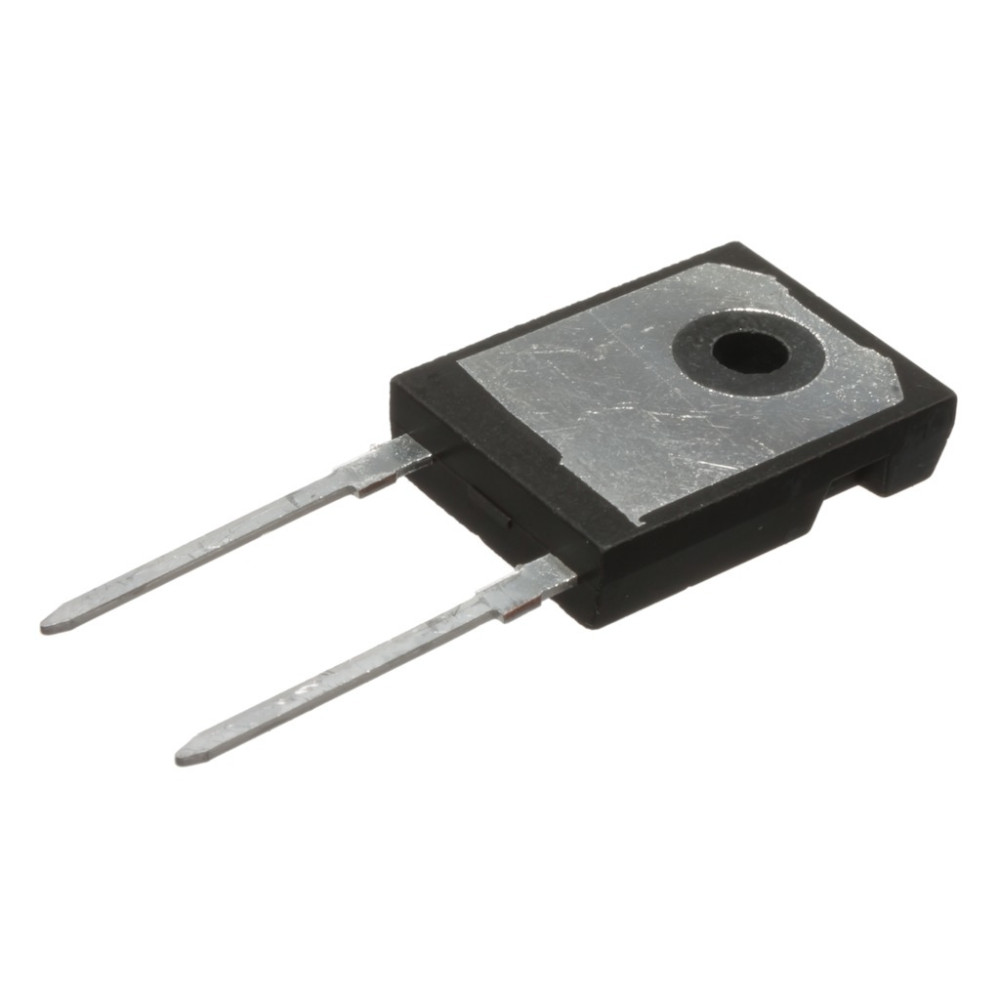

DSEI120-06A - 600V 126A Tr=35 ns TO-247AD dióda - IXYS
The picture is for illustration purposes only. Please read the product description!
Out of stock
Diode, 600V 126A Tr=35 ns TO-247AD
Manufacturer code:
DSEI120-06A
Manufacturer:
Datasheet:
Group:
Standard Silicon Diodes - Rectifier
Component Family:
Case Style:
PCB-mountable
Case:
Termination Type:
Through-hole technology
Number of Pins:
2
Case Style (JEDEC):
TO-247AC
Forward Current If [A]:
126 A
Forward Surge Current Ifsm [A], Max:
660 A
Forward Voltage Vfmax. [V]:
1.8 V @ 70 A
Repetitive Reverse Voltage Vrrm [V], Max:
600 V
Reverse Current Ir [A]:
3 mA..20 mA
Reverse Recovery Time tr [sec.], Max.:
50 ns
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+150 °C
ROHS:
Yes
Our Warehouse
0 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Data
Additional Datasheet:
Weight:
6 g/pcs
