BYV32E-200,127 - 200V 2x10A TO-220AB Tr=25ns dióda - NXP

1.0795 €+ VAT
1.371 € incl. VAT

BYV32E-200,127 - 200V 2x10A TO-220AB Tr=25ns dióda - NXP

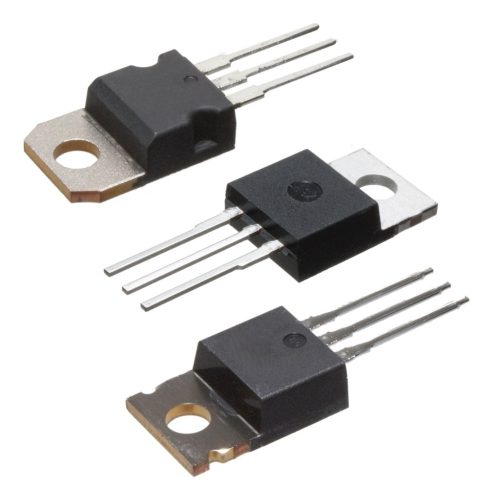

The picture is for illustration purposes only. Please read the product description!

In stock 331 pcs

End of Life

1.0795 €+ VAT
1.371 € incl. VAT

Diode, 200V 2x10A TO-220AB Tr=25ns

Manufacturer code:

BYV32E-200,127

Manufacturer:

NXP

Datasheet:

BYV32E-200.pdf

Group:

Standard Silicon Diodes - Rectifier

Component Family:

Double rectifier diode ( tr<500 nanosec. )

Case Style:

PCB-mountable

Case:

TO-220AB

Termination Type:

Through-hole technology

Number of Pins:

Case Style (JEDEC):

TO-220AB

Forward Current If [A]:

2 x 10 A

Forward Surge Current Ifsm [A], Max:

137 A

Forward Voltage Vfmax. [V]:

0.72 V @ 8 A

Repetitive Reverse Voltage Vrrm [V], Max:

200 V

Reverse Current Ir [A]:

6 uA..600 uA

Reverse Recovery Time tr [sec.], Max.:

25 ns

Operating Temperature Min. [°C]:

-40 °C

Operating Temperature Max. [°C]:

+150 °C

ROHS:

Yes

pcs

Our Warehouse

319 pcs

Available for immediate delivery

Our Shop in Szeged

12 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_E_005.pdf ROHS_NXP.pdf

Weight:

2 g/pcs
